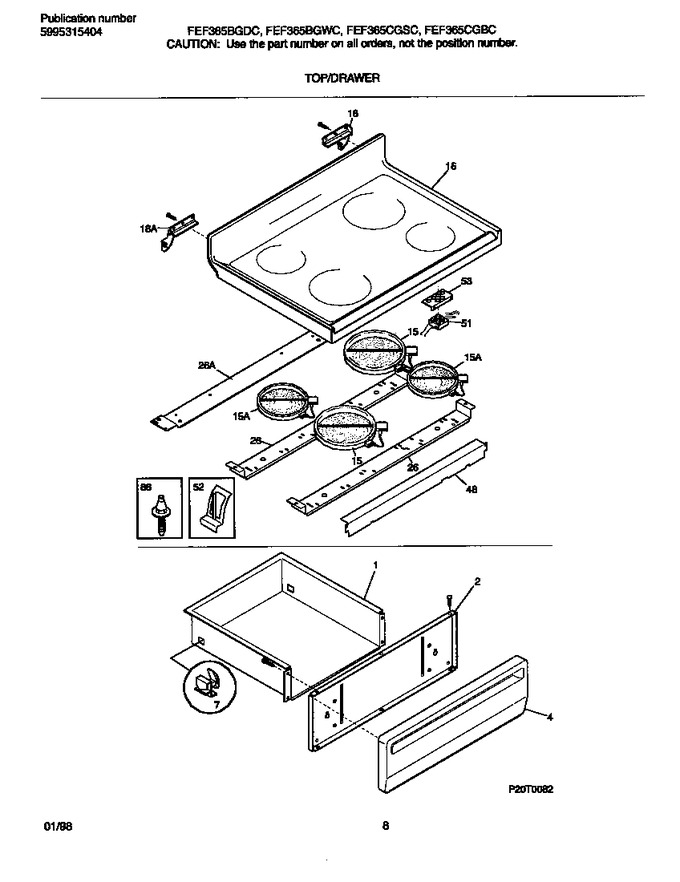

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
15	318198817		Element-surface,radiant ,small/6 Inch ,1200w,(2) ,limit   (Replaces: 316010203)			Immediately	$ 192.78
15	318198834		Element-surface,radiant ,large/8 Inch/rf,2100w ,(2) ,lim   (Replaces: 316010204)				$ 205.36
16	316098104		Main Top, Smooth Top, Almond		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
26	316099201		Bracket-support, Chassis		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316100200		Shield-wire, Main Top		Appelez-nous	-
51	80142193		Indicator Light		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
53	316099300		Bracket-indicator Light, Hot Surface, 4 Hole		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
88	316099500		Pin,guide ,(2)				$ 6.53
*12652	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*12653	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*12655	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
*12656	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*12657	316089600		Spacer-drawer, (2)		Appelez-nous	-
*12658	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*12659	5309951550		Cleaner-cooktop		Appelez-nous	-
*12660	08067785		Screw,hex Washer Head, 8-18(ab) X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
