SELECT A DIAGRAM

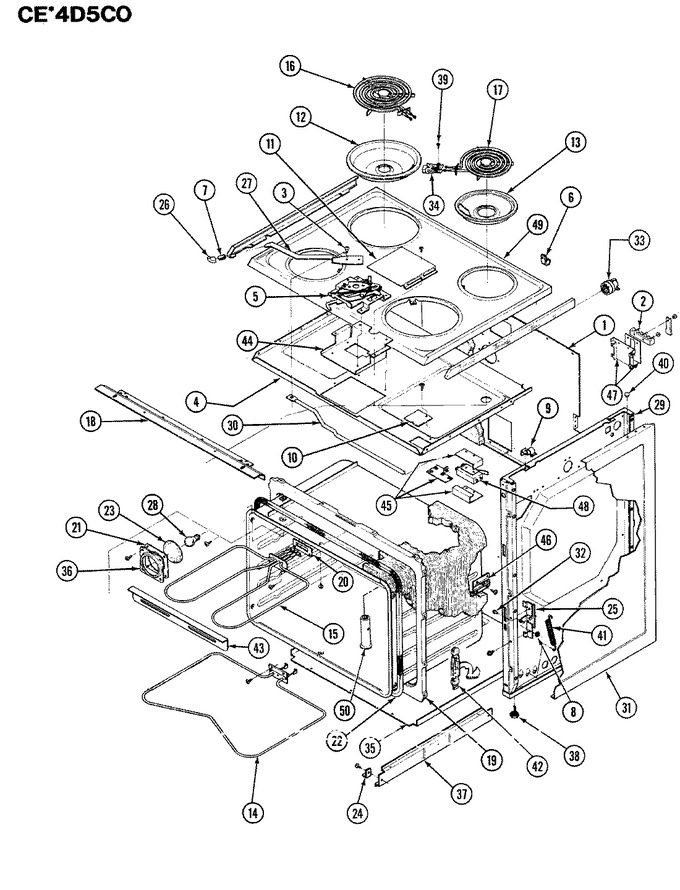

01 - Body


02 - Control Panel


03 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F108-80		Back, Main	1	Appelez-nous	-
1	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
2	WPW10245259		Block, Terminal   (Replaces: 7401P002-60)	1		Immediately	$ 31.65
3	7116P003-60		Bolt	1	Appelez-nous	-
4	3801F093-45		Bracket, Burner Box	1	Appelez-nous	-
4	3802F076-51		Brace, Inner Side	1	Appelez-nous	-
4	WP7101P126-60		Screw   (Replaces: 7101P057-60)	1		Immediately	$ 6.85
4	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
4	4011F158-23		Bottom, Burner Box	1	Appelez-nous	-
4	3802F029-80		Brace, Main Top	1	Appelez-nous	-
4	3802F010-80		Brace, Back-right	1	Appelez-nous	-
4	3802F008-80		Brace, Back-left	1	Appelez-nous	-
4	3801F198-51		Bracket, Tie-down	1	Appelez-nous	-
4	3801F024-51		Bracket	1	Appelez-nous	-
5	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
5	8002P020-60		Catch Assy.	1	Appelez-nous	-
5	3818F027-45		Channel, Switch	1	Appelez-nous	-
6	7111P002-60		Clamp, Wire 3/4	1	Appelez-nous	-
7	7112P003-60		Clip, Latch Handle	1	Appelez-nous	-
8	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	1		Immediately	$ 11.07
8	7112P019-60		Clip, Hinge Pin	1	Appelez-nous	-
9	4005F288-51		Cover,access	1	Appelez-nous	-
9	4005F016-80		Cover, Back Burner Box	1	Appelez-nous	-
9	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
9	4005F282-51		Cover, Flue Box	1	Appelez-nous	-
9	WP7101P126-60		Screw   (Replaces: 7101P104-60)	1		Immediately	$ 6.85
9	7112P030-60		Clip, Top Retainer	1	Appelez-nous	-
10	4005F139-51		Cover, Switch	1	Appelez-nous	-
10	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
11	4005F137-80		Cover, Catch Assy.	1	Appelez-nous	-
11	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
12	WPW10196405		Bowl, Drip (8``)   (Replaces: 7725P014-60)	1		Immediately	$ 15.56
13	WPW10196406		Bowl, Drip (6``)(w/hole-chr)   (Replaces: 7725P015-60)	1		Immediately	$ 12.05
14	WP7101P126-60		Screw   (Replaces: 7101P104-60)	1		Immediately	$ 6.85
14	WPY04000041		Element,bake   (Replaces: 7406P010-60)	1			$ 133.20
15	WPY04000048		Element,broil   (Replaces: 7406P003-60)	1			$ 160.58
16	WP3191454		Element (8``)   (Replaces: 7406P015-60)	1			$ 163.63
17	WP660532		Element (6``)   (Replaces: 7406P018-60)	1		Immediately	$ 36.90
18	4012F017-80		Front, Burner Box Bottom	1	Appelez-nous	-
18	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
18	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	1			$ 15.94
19	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	1			$ 6.47
19	2201F061-23		Front, Oven Upper	1	Appelez-nous	-
20	7201P003-60		Gasket, Element	1	Appelez-nous	-
20	7201P014-60		Gasket, Housing	1	Appelez-nous	-
21	7201P015-60		Gasket, Lamp Retainer	1	Appelez-nous	-
22	7201P036-60		Gasket, Oven	1			$ 118.90
23	7902P057-60		Glass, Lamp Guard	1	Appelez-nous	-
24	8016P005-60		Glide, Front	1	Appelez-nous	-
25	3418A029-34		Hinge Assy. (lt)	1			$ 48.47
25	4001F051-51		Housing,main Wire	1	Appelez-nous	-
25	3418A030-34		Hinge Assy. (rt)	1	Appelez-nous	-
25	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
25	4001F020-23		Housing, Lamp	1	Appelez-nous	-
25	WP7101P126-60		Screw   (Replaces: 7101P104-60)	1		Immediately	$ 6.85
25	WP4159193		Screw   (Replaces: 7101P112-60)	1			$ 4.29
26	7701P068-60		Handle, Latch (blk)	1	Appelez-nous	-
26	3413F002-23		Insert, Broil Pan	1	Appelez-nous	-
27	8009P009-60		Lever, Door Lock	1	Appelez-nous	-
27	WP4159193		Screw   (Replaces: 7101P018-60)	1			$ 4.29
28	40A15		Bulb, Oven   (Replaces: 7407P026-60)	1		Immediately	$ 1.98
29	4009W053-80		Lining, Inner Side	1	Appelez-nous	-
30	4396923		Pan, Broil   (Replaces: 3401F004-23)	1		Immediately	$ 52.04
30	7807P004-60		Link, Switch	1	Appelez-nous	-
30	WP488130		Nut, Keps Black   (Replaces: 7103P062-60)	1			$ 6.27
31	2618F052-74		Panel, Side (alm)	1	Appelez-nous	-
32	7113P002-60		Pin, Hinge	1			$ 9.05
32	3605F146-51		Plate, Conduit Reinforcement	1			$ 6.06
32	7801P030-60		Rack, Oven	1			$ 57.14
32	WP7101P126-60		Screw   (Replaces: 7101P057-60)	1		Immediately	$ 6.85
32	3605F156-51		Plate,conduit	1	Appelez-nous	-
33	7408P002-60		Receptacle, Lamp	1	Appelez-nous	-
34	12001676		Kit, Receptacle   (Replaces: 1430306K)	1		Immediately	$ 28.45
35	3804F093-80		Retainer, Bottom Ins.	1	Appelez-nous	-
35	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
36	3804F012-45		Retainer, Lamp Guard	1	Appelez-nous	-
36	7107P017-60		Rivet	1	Appelez-nous	-
36	WP7101P126-60		Screw   (Replaces: 7101P064-60)	1		Immediately	$ 6.85
37	3406F025-51		Runner,outer	1	Appelez-nous	-
38	Y7101P25460		Leg, Leveling	1	Appelez-nous	-
39	3604F007-80		Shield, Light Receptacle	1	Appelez-nous	-
39	WP74004005		Screw   (Replaces: 7101P278-60)	1			$ 6.95
39	3604F092-45		Shield, Broil	1	Appelez-nous	-
40	8010P048-60		Spacer, Main Top	1	Appelez-nous	-
41	WP7803P058-60		Spring, Ov Dr   (Replaces: 7803P055-60)	1			$ 16.55
42	3420A033-34		Stop, Oven Door	1	Appelez-nous	-
43	WP7101P126-60		Screw   (Replaces: 7101P064-60)	1		Immediately	$ 6.85
43	3807F176-15		Support, Broil Element	1	Appelez-nous	-
44	3807F195-45		Support, Catch Assy.	1	Appelez-nous	-
45	3807F193-45		Support, Lock Switch	1	Appelez-nous	-
46	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
46	3807F205-45		Support, Oven Rear	1	Appelez-nous	-
47	3807F157-80		Support, Terminal Block	1	Appelez-nous	-
47	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
48	7403P045-60		Switch, Door Lock	1	Appelez-nous	-
49	2002W029-30		Top Assy, Main	1	Appelez-nous	-
49	2002W028-84		Top Assy, Main	1	Appelez-nous	-
50	8026A007-60		Tube, Vent	1	Appelez-nous	-
NI	8112P015-60		Manual, Use & Care	1	Appelez-nous	-
