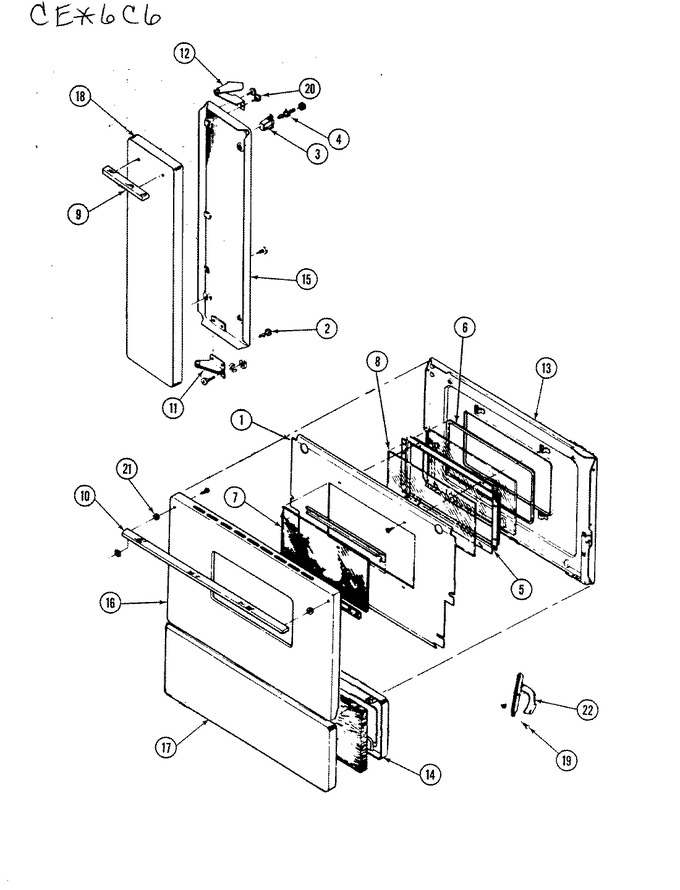

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F094-51 | Baffle, Oven Door | 1 |
|
- | ||||
| 2 | 8003P003-60 | Bumper | 1 |
|
- | ||||
| 3 | 8002P013-60 | Catch, Female | 1 |
|
- | ||||
| 4 | WP71002097 | Catch (Replaces: 8024P002-60) | 1 |
|
$ 11.12 | ||||
| 5 | 3603F013-80 | Frame, Window----na | 1 |
|
- | ||||
| 6 | 7201P017-60 | Gasket, Window | 1 |
|
$ 52.69 | ||||
| 7 | 7902P051-60 | Glass | 1 |
|
- | ||||
| 8 | 7902P035-60 | Glass, Door Inner | 1 |
|
- | ||||
| 9 | 7701P009-60 | Handle, Compartment Door | 1 |
|
- | ||||
| 10 | 7701P030-60 | Handle, Door (chr) | 1 |
|
- | ||||
| 10 | 7701P012-60 | Handle, Drawer (chr) | 1 |
|
- | ||||
| 11 | 7106P003-60 | Hinge | 1 |
|
- | ||||
| 12 | 7106P007-60 | Hinge | 1 |
|
- | ||||
| 13 | 2402W119-23 | Lining, Oven Door | 1 |
|
- | ||||
| 14 | 2404F020-23 | Lining, Broiler | 1 |
|
- | ||||
| 15 | 2408F005-80 | Lining, Compartment Door | 1 |
|
- | ||||
| 16 | 2401F042-71 | Panel, Door (wht) | 1 |
|
- | ||||
| 16 | 2401F042-76 | Panel, Door (hvst Wheat) | 1 |
|
- | ||||
| 16 | 2401F042-74 | Panel, Door (alm) | 1 |
|
- | ||||
| 16 | 2401F042-78 | Panel, Door (coff) | 1 |
|
- | ||||
| 16 | 2401F042-77 | Panel, Door (avoc) | 1 |
|
- | ||||
| 17 | 2403F026-77 | Panel, Storage Drawer Avoc. | 1 |
|
- | ||||
| 17 | 2403F026-76 | Panel, Storage Dwr Hvt Wheat | 1 |
|
- | ||||
| 17 | 2403F026-78 | Panel, Storage Dwr Coffee | 1 |
|
- | ||||
| 17 | 2403F026-71 | Panel, Drawer (wht) | 1 |
|
- | ||||
| 17 | 2403F026-74 | Panel, Storage Dwr Almond | 1 |
|
- | ||||
| 18 | 2409F007-71 | Panel, Compartment White | 1 |
|
- | ||||
| 18 | 2409F007-74 | Panel, Compartment Almond | 1 |
|
- | ||||
| 18 | 2409F007-78 | Panel, Compartment Coffee | 1 |
|
- | ||||
| 18 | 2409F007-77 | Panel, Compartment Avocodo | 1 |
|
- | ||||
| 18 | 2409F007-76 | Panel, Compartment Harvest | 1 |
|
- | ||||
| 19 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 19 | 3804F050-20 | Retainer, Light Guard | 1 |
|
- | ||||
| 20 | 1986258 | Screw, Special | 1 |
|
- | ||||
| 20 | 7212P025-60 | Seal, Oven Door | 1 |
|
- | ||||
| 20 | 7212P003-60 | Seal, Oven Door | 1 |
|
$ 46.94 | ||||
| 21 | 8010P009-60 | Spacer, Door | 1 |
|
- | ||||
| 21 | 7803P003-60 | Spring | 1 |
|
- | ||||
| 22 | 3420A035-34 | Stop, Oven Door | 1 |
|
- |
