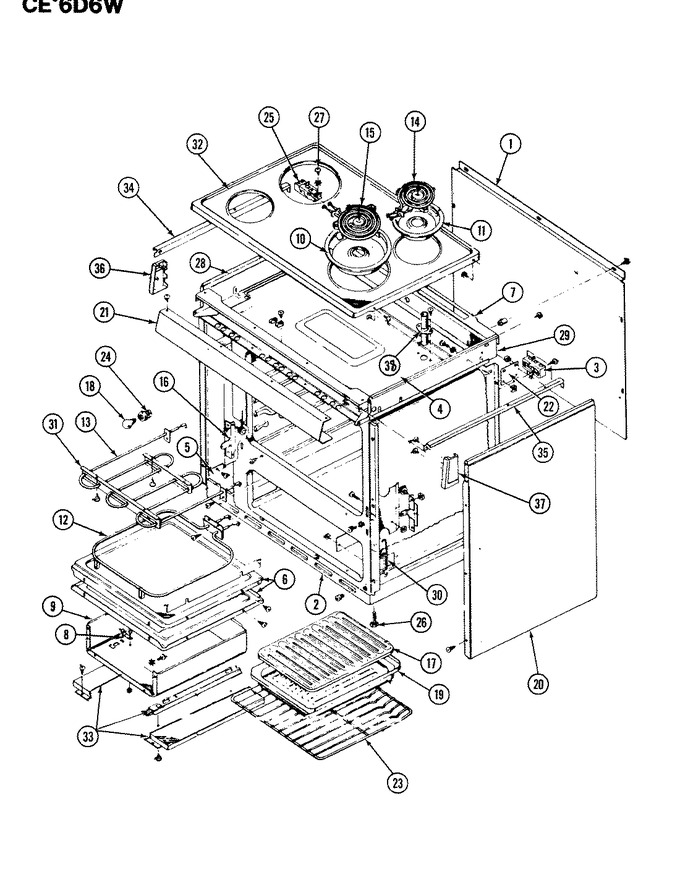

01 - Body
02 - Control Panel
03 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F049-80 | Back, Main | 1 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 2 | 7103P004-60 | Nut, Base Mtg. | 1 |
|
- | ||||
| 2 | 7101P004-60 | Screw | 1 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 2 | 4003W002-80 | Base Assy. Range | 1 |
|
- | ||||
| 3 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 4 | 4011F017-80 | Box, Burner | 1 |
|
- | ||||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 5 | 4011F131-80 | Bottom, Compartment | 1 |
|
- | ||||
| 6 | 3802F072-80 | Brace Compt. Top | 1 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 6 | 2205F006-16 | Bottom, Oven | 1 |
|
- | ||||
| 6 | 2205F006-24 | Bottom, Oven | 1 |
|
- | ||||
| 6 | 3802F012-80 | Brace, Base | 1 |
|
- | ||||
| 6 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 1 |
|
$ 12.69 | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 1 |
|
Immediately | $ 6.85 | |||
| 6 | 3802F014-80 | Brace | 1 |
|
- | ||||
| 6 | 3802F031-80 | Brace, Top | 1 |
|
- | ||||
| 7 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 7 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 1 |
|
Immediately | $ 6.85 | |||
| 7 | 3802F038-70 | Brace Top Rear | 1 |
|
- | ||||
| 7 | 3801F053-34 | Bracket | 1 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 8 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 8 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 1 |
|
$ 12.69 | ||||
| 8 | 7103P067-60 | Lock Nut, Catch | 1 |
|
- | ||||
| 8 | 4005F020-80 | Cover Back Burner | 1 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P104-60) | 1 |
|
Immediately | $ 6.85 | |||
| 8 | 7112P020-60 | Clip, Oven Front | 1 |
|
- | ||||
| 8 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 8 | 4005F302-51 | Cover Access | 1 |
|
- | ||||
| 8 | WP74004005 | Screw (Replaces: 7101P076-60) | 1 |
|
$ 6.95 | ||||
| 8 | 8002P001-60 | Catch | 1 |
|
- | ||||
| 8 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 8 | 7103P040-60 | Nut, Snap (wht) | 1 |
|
- | ||||
| 9 | 3405W004-80 | Drawer, Service | 1 |
|
- | ||||
| 10 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P014-60) | 1 |
|
Immediately | $ 15.56 | |||
| 11 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 1 |
|
Immediately | $ 12.05 | |||
| 12 | 7406P011-60 | Element | 1 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P104-60) | 1 |
|
Immediately | $ 6.85 | |||
| 13 | 7406P005-60 | Element Broil (large) | 1 |
|
- | ||||
| 14 | WPY04000036 | Element, Std. Surface (Replaces: 7406P017-60) | 1 |
|
$ 88.70 | ||||
| 15 | WPY04000035 | Element, Giant Surface (Replaces: 7406P014-60) | 1 |
|
$ 160.60 | ||||
| 16 | 4001F038-80 | Housing, Main Wire | 1 |
|
- | ||||
| 16 | 7101P114-60 | Screw | 1 |
|
- | ||||
| 16 | 3418A031-34 | Hinge, Door | 1 |
|
- | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P104-60) | 1 |
|
Immediately | $ 6.85 | |||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 17 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 18 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 19 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 20 | WP7101P126-60 | Screw (Replaces: 7101P061-60) |
|
Immediately | $ 6.85 | ||||
| 20 | 2618F013-74 | Panel, Side Almond |
|
- | |||||
| 20 | 7101P250-60 | Screw, Trim |
|
- | |||||
| 21 | WP7101P126-60 | Screw (Replaces: 7101P057-60) |
|
Immediately | $ 6.85 | ||||
| 21 | 2614F001-84 | Panel, Upper Front |
|
- | |||||
| 21 | 3605F146-51 | Plate, Conduit Reinforcement | 1 |
|
$ 6.06 | ||||
| 21 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 21 | 3605F149-80 | Plate Conduit | 1 |
|
- | ||||
| 22 | 3605F066-34 | Hinge | 1 |
|
- | ||||
| 23 | 7801P013-60 | Rack, Oven | 1 |
|
- | ||||
| 24 | 7408P001-60 | Recept, Oven Light | 1 |
|
- | ||||
| 25 | 3804F047-80 | Retainer, Insulation | 1 |
|
- | ||||
| 25 | 3602F002-51 | Reflector - Oven Light | 1 |
|
- | ||||
| 25 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 1 |
|
Immediately | $ 28.45 | |||
| 25 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 26 | 7101P029-60 | Screw, Special | 1 |
|
- | ||||
| 27 | WP74004005 | Screw (Replaces: 7101P278-60) | 1 |
|
$ 6.95 | ||||
| 27 | 3604F037-44 | Cover | 1 |
|
$ 30.78 | ||||
| 27 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 28 | 4016F006-80 | Side, Burner Box Left | 1 |
|
- | ||||
| 29 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 29 | 4016F002-80 | Side, Burner Box Right | 1 |
|
- | ||||
| 30 | 7803P003-60 | Spring | 1 |
|
- | ||||
| 30 | 3420A035-34 | Stop, Oven Door | 1 |
|
- | ||||
| 31 | 3807F176-15 | Support, Broil Element | 1 |
|
- | ||||
| 32 | 7101P250-60 | Screw, Trim |
|
- | |||||
| 32 | 2002W013-84 | Top, Main Alm |
|
- | |||||
| 33 | 3807A003-80 | Track, Broiler Door | 1 |
|
- | ||||
| 33 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 34 | 7720P056-60 | Trim | 1 |
|
- | ||||
| 35 | 2610F002-32 | Trim | 1 |
|
- | ||||
| 35 | 2610F001-32 | Trim | 1 |
|
- | ||||
| 35 | 7720P059-60 | Trim | 1 |
|
- | ||||
| 36 | 7720P055-60 | Trim, Left | 1 |
|
- | ||||
| 37 | 7720P058-60 | Trim, Right | 1 |
|
- | ||||
| 38 | 3414A002-44 | Tubing, Misc | 1 |
|
- | ||||
| 38 | 8112P040-60 | Manual, Use & Care | 1 |
|
- |
