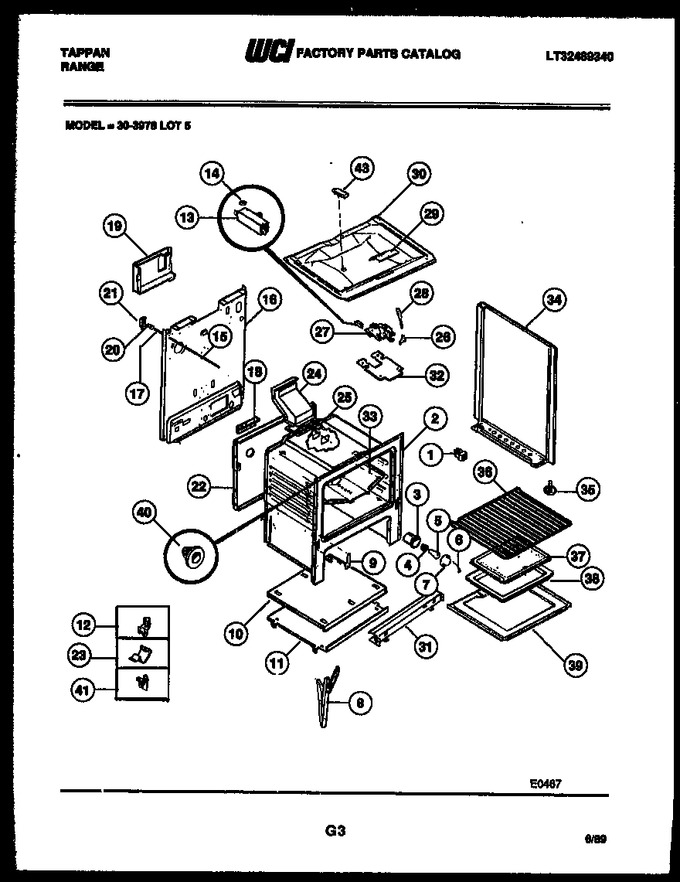

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
3	3131363		Tube, Oven Light		Appelez-nous	-
4	3014073		Socket-oven Light		Appelez-nous	-
5	374T018P05		Light Bulb, Oven		Appelez-nous	-
6	3051224		Wire-glass Retainer		Appelez-nous	-
7	3131298		Glass-oven Light Lens		Appelez-nous	-
8	3051414		Channel, Door Hinge (2)		Appelez-nous	-
9	3131570		Cover-hinge Cutout (2)				$ 7.35
10	3131951		Shield-heat-upper		Appelez-nous	-
11	3131313		Shield-heat-lower		Appelez-nous	-
12	3131295		Clip - Thermo Bulb		Appelez-nous	-
13	3131672		Switch-latch		Appelez-nous	-
14	3051733		Fastener Push On		Appelez-nous	-
15	3051251		Cover, Rod		Appelez-nous	-
16	3131567		Back, Main		Appelez-nous	-
17	3051495		Rod, Light		Appelez-nous	-
18	3131278		Angle, Light Shield		Appelez-nous	-
19	3131294		Channel, Light Shield		Appelez-nous	-
20	695T128P04		Switch, Door		Appelez-nous	-
21	3131289		Bracket, Light Switch		Appelez-nous	-
22	3131316		Shield, Heat		Appelez-nous	-
23	145T130P01		Clip, Wire		Appelez-nous	-
24	3131931		Flue		Appelez-nous	-
25	3131355		Gasket, Flue		Appelez-nous	-
26	358T158S02		Knob, Latch		Appelez-nous	-
27	3131972		Latch Door		Appelez-nous	-
28	3131357		Handle, Latch		Appelez-nous	-
29	3131101		Cover, Plate		Appelez-nous	-
30	095T030F02-86		Burner Box		Appelez-nous	-
31	3200835		Shield, Main Front		Appelez-nous	-
32	3051413		Shield, Latch Switch		Appelez-nous	-
33	3200836		Shield-main Fronte		Appelez-nous	-
34	3200791		Panel, Bodyside, Rh (wheat)		Appelez-nous	-
34	3200794		Panel, Bodyside, Lh (wheat)		Appelez-nous	-
35	636M004P01		Screw, Leveling		Appelez-nous	-
36	3131973		Rack-oven		Appelez-nous	-
37	3131356		Insert, Broiler Pan		Appelez-nous	-
38	3013568		Pan, Broiler		Appelez-nous	-
39	058T036F03-86		Bottom, Oven		Appelez-nous	-
40	102T044P02		Button Remote Switch		Appelez-nous	-
41	3051162		Glide-utility Drawer (2)			Immediately	$ 8.22
43	3015371		Cover-burner Box		Appelez-nous	-
*24510	3934056		Anti-tip Brkt		Appelez-nous	-
*24510	3200834		Shield - Heat B/s		Appelez-nous	-
*24510	3131737		Washer-black (4)				$ 5.59
11A	665T437F01		Shield-wool (non-illustrated)		Appelez-nous	-
14A	3051307		Stud-spacer (non-illustrated)		Appelez-nous	-
15A	5304534000		Cord, Power   (Replaces: 3131425)			Immediately	$ 33.37
25A	3131593		Shield, Bimetal Latch (non-illustrated)		Appelez-nous	-
25B	636T144P01		Screw Latch Knob (non-illustrated)		Appelez-nous	-
39A	694T092F01		Support-oven Bottom (non-illustrated)		Appelez-nous	-
39B	3131903		Bumper				$ 55.36
40A	241T017P255		Fastener, Power Cord (non-illustrated)		Appelez-nous	-
40B	3131303		Insulation, Back (non-illustrated)		Appelez-nous	-
40C	3131302		Insulation Front Frame (non-illustrated)		Appelez-nous	-
40D	3017133		Insulation-top Wrap (non-illustrated)		Appelez-nous	-
40E	3200834		Shield-heat, Body Side (non-illustrated)		Appelez-nous	-
40F	08068016		Spacer-baffle (non-illustrated)		Appelez-nous	-
40G	3200833		Insulation-wrap (non-illustrated)		Appelez-nous	-
40H	3017133		Insulation-touch (non-illustrated)		Appelez-nous	-
40I	316282700		Screw-bottom (2) (non-illustrated)   (Replaces: 3131732)				$ 9.93
41A	3131314		Shield, Oven Top (non-illustrated)		Appelez-nous	-
41B	3131590		Shield, Wall Rear (non-illustrated)		Appelez-nous	-
