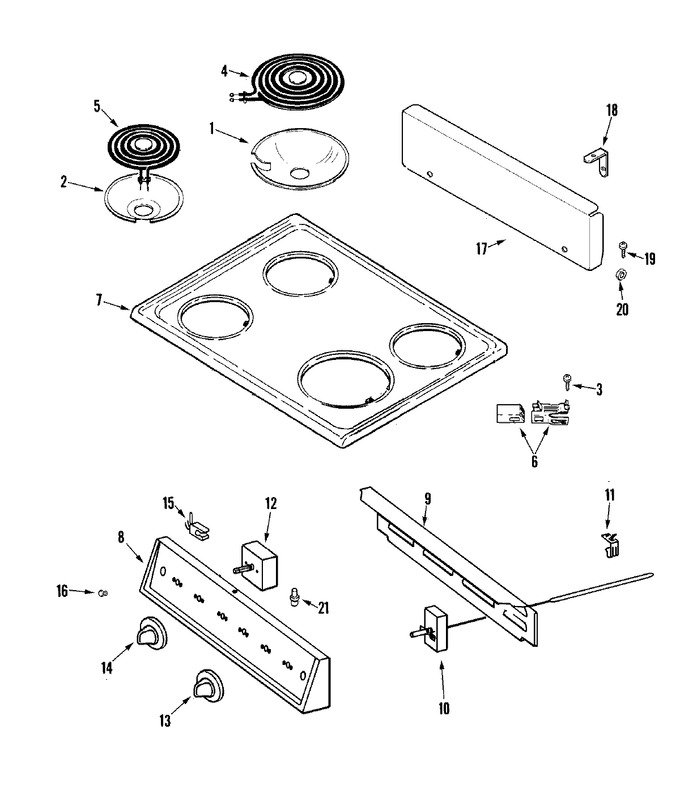

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 74001213) | 10 |
|
Immediately | $ 15.56 | |||
| 2 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 74001212) | 10 |
|
Immediately | $ 12.05 | |||
| 2 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 10 |
|
Immediately | $ 12.05 | |||
| 3 | WP74004005 | Screw, 6-32 X 5/16`` (Replaces: 74004005) | 10 |
|
$ 6.95 | ||||
| 4 | WP9761346 | Element, Surface (8``-5t) (Replaces: 74007159) | 10 |
|
Immediately | $ 94.16 | |||
| 5 | WPW10345407 | Element, Surface (6``) (Replaces: 74007158) | 10 |
|
Immediately | $ 141.79 | |||
| 6 | 12001676 | Receptacle Assy. | 10 |
|
Immediately | $ 28.45 | |||
| 7 | 3801F187-51 | Bracket, Top Anchor | 10 |
|
- | ||||
| 7 | 74006389 | Top, Main (bsq) | 10 |
|
- | ||||
| 7 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 10 |
|
Immediately | $ 6.85 | |||
| 8 | 74010601 | Panel, Control (bsq) | 10 |
|
- | ||||
| 8 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 10 |
|
Immediately | $ 6.85 | |||
| 9 | 74006390 | Shield, Control | 10 |
|
- | ||||
| 9 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 10 |
|
Immediately | $ 6.85 | |||
| 10 | WP74009277 | Thermostat (Replaces: 74009277) | 10 |
|
$ 287.67 | ||||
| 10 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 11 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 11.07 | |||
| 12 | WP74002328 | Switch, Infinite (6``) (Replaces: 74002328) | 10 |
|
$ 144.06 | ||||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 12 | WPW10179654 | Switch, Infinite (2400w) (Replaces: 7403P289-60) | 10 |
|
$ 144.45 | ||||
| 13 | 74010602 | Knob, Thermostat (bsq) | 10 |
|
- | ||||
| 14 | 74010603 | Knob, Infinite Switch (bsq) | 10 |
|
- | ||||
| 15 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 16 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 17 | 74010600 | Backguard (bsq) | 10 |
|
- | ||||
| 18 | 3801F937-51 | Bracket, Support | 14 |
|
- | ||||
| 18 | 74003271 | Bracket, Support | 10 |
|
- | ||||
| 19 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 10 |
|
$ 6.77 | ||||
| 20 | W10080180 | Nut (Replaces: 7103P034-60) | 10 |
|
$ 12.13 | ||||
| 21 | WP486255 | Nut, Strike (Replaces: 7103P105-60) | 10 |
|
$ 5.54 | ||||
| 21 | 8024P003-60 | Strike, Main Top | 10 |
|
- | ||||
| NI | 8113P743-60 | Manual, Use & Care | 15 |
|
- | ||||
| NI | 74003270 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 8113P555-60 | Manual, Use & Care | 12 |
|
- |
