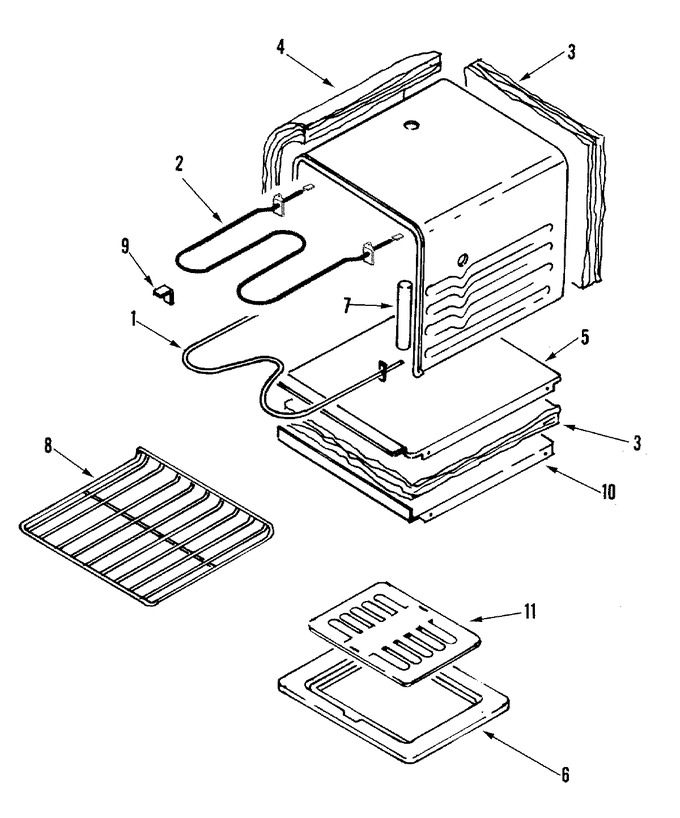

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7101P287-60		Screw, Metal Grounding	10			$ 12.03
1	WP74010761		Element, Bake   (Replaces: 74004027)	10			$ 108.93
2	74003274		Element, Broil	10	Appelez-nous	-
3	7002P091-60		Insulation, Oven Back	10	Appelez-nous	-
4	74009273		Insulation, Oven Wrap	10	Appelez-nous	-
5	2205F013-19		Bottom, Oven	10	Appelez-nous	-
5	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	10		Immediately	$ 6.85
6	Y3401F02019		Pan, Broil	10	Appelez-nous	-
7	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	10		Immediately	$ 6.85
7	3414F084-45		Tube, Vent	10	Appelez-nous	-
8	7801P019-60		Rack, Oven	10	Appelez-nous	-
9	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	10		Immediately	$ 6.85
9	3807F176-19		Support, Broil Element	10	Appelez-nous	-
10	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	10		Immediately	$ 6.85
10	3807F285-51		Support, Insulation	10	Appelez-nous	-
11	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
