SELECT A DIAGRAM

01 - Body


02 - Door


03 - Oven/base


04 - Top Assembly


05 - Wiring Information

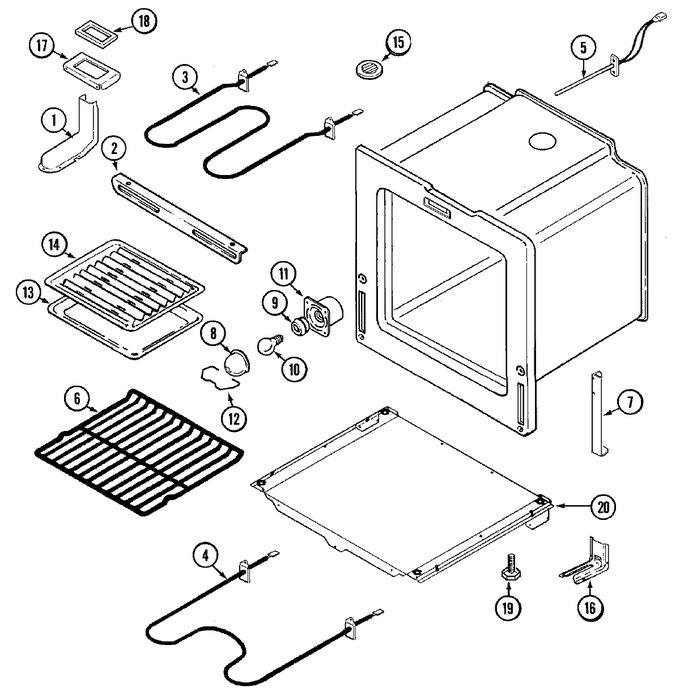

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004170		Box, Vent	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	74003386		Support, Broil Element	10	Appelez-nous	-
3	WPW10310249		Element, Broil (4 Pass)   (Replaces: 74003041)	10		Immediately	$ 112.33
3	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
4	WP74010750		Element, Bake   (Replaces: 74003039)	10		Immediately	$ 47.69
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	12001656		Sensor, Long   (Replaces: 74004471)	10		Immediately	$ 39.55
6	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
7	74004171		Support, Oven	10	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	74003389		Cover, Bulb	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
9	74003387		Receptacle, Bulb	10			$ 5.84
10	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
11	74003388		Housing, Bulb	10	Appelez-nous	-
12	74003391		Retainer, Bulb Cover	10	Appelez-nous	-
13	Y3401F02019		Pan, Broil	10	Appelez-nous	-
14	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
15	74003633		Screen, Smoke Eliminator	10	Appelez-nous	-
16	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74002311)	10		Immediately	$ 4.69
16	WP7101P485-60		Screw   (Replaces: 7101P352-60)	10			$ 26.33
17	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	74004178		Plate, Vent	10	Appelez-nous	-
18	74004179		Gasket, Vent	10	Appelez-nous	-
19	W11665456		Leg, Leveling   (Replaces: 74002373)	10		Immediately	$ 25.30
20	74004225		Bottom, Main	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
