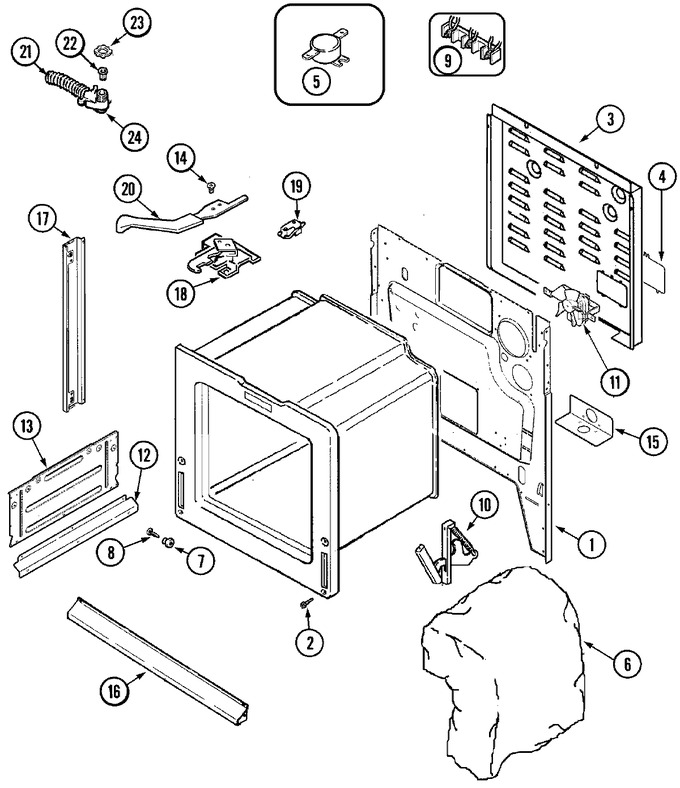

01 - Body
02 - Door
03 - Oven/base
04 - Top Assembly
05 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004215 | Back, Main | 10 |
|
- | ||||
| 2 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 3 | 74005265 | Cover, Wire (rear) | 16 |
|
- | ||||
| 3 | 74004183 | Cover, Wire (rear) | 10 |
|
- | ||||
| 4 | 74005264 | Cover, Terminal Block | 16 |
|
- | ||||
| 4 | 74004184 | Cover, Terminal Block | 10 |
|
- | ||||
| 5 | WP71001844 | Thermostat, Hi-limit (Replaces: 71001844) | 10 |
|
$ 195.41 | ||||
| 6 | 74003381 | Insulation, Oven Wrap | 10 |
|
- | ||||
| 6 | 74003503 | Insulation, Oven | 10 |
|
- | ||||
| 6 | 74003382 | Insulation, Back/bottom | 10 |
|
- | ||||
| 7 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 8 | W11693756 | Screw (8abx19/32-zn) (Replaces: 74003004) | 10 |
|
Immediately | $ 12.65 | |||
| 9 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 10 |
|
Immediately | $ 31.65 | |||
| 9 | 74002305 | Block, Disconnect | 10 |
|
- | ||||
| 9 | 74002306 | Block, Disconnect | 10 |
|
- | ||||
| 10 | WP74011140 | Hinge, Door (Replaces: 74003243) | 10 |
|
Immediately | $ 120.21 | |||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74004947 | Fan Motor Asy. | 15 |
|
$ 214.77 | ||||
| 11 | 71001851 | Fan Motor Assy. | 10 |
|
- | ||||
| 12 | 74004176 | Extension, Heat Shield | 10 |
|
- | ||||
| 13 | 74004177 | Shield, Heat | 10 |
|
- | ||||
| 14 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 10 |
|
$ 4.29 | ||||
| 15 | W10190166 | Bracket, Power Supply (Replaces: 74004180) | 10 |
|
$ 8.32 | ||||
| 16 | 74001337 | Shield, Vent (blk) | 10 |
|
- | ||||
| 16 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 17 | 74004218 | Trim, Side (blk) | 10 |
|
- | ||||
| 18 | 12001943 | Door Latch Kit | 23 |
|
- | ||||
| 18 | 74003380 | Latch, Door | 10 |
|
- | ||||
| 18 | 74001084 | Insulation, Door Latch | 10 |
|
- | ||||
| 18 | 74003139 | Retainer, Latch Insulation | 10 |
|
- | ||||
| 19 | 74003383 | Switch, Door Latch | 10 |
|
- | ||||
| 19 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 19 | 74003630 | Insulator, Switch | 10 |
|
- | ||||
| 20 | 74001075 | Lever, Latch (blk) | 10 |
|
- | ||||
| 21 | 74004221 | Tubing, Flex | 10 |
|
- | ||||
| 22 | 74004222 | Grommet, Anti-short | 10 |
|
$ 7.82 | ||||
| 23 | 7109P002-60 | Washer | 10 |
|
- | ||||
| 24 | 74004223 | Connector, Rt Angle | 10 |
|
- |
