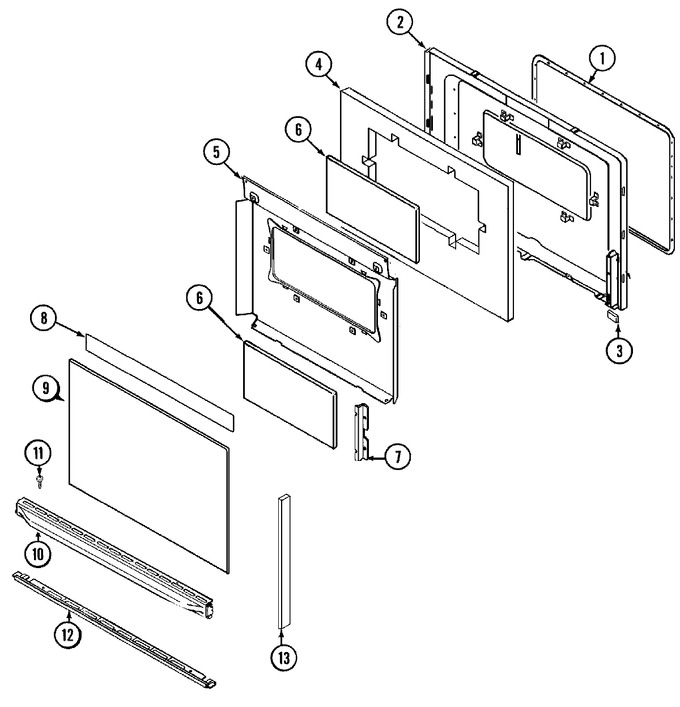

SELECT A DIAGRAM

01 - Body


02 - Door


03 - Oven/base


04 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
2	74004972		Lining, Oven Door	10	Appelez-nous	-
3	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
4	74001842		Insulation, Door	10	Appelez-nous	-
5	74001843		Baffle, Door	10	Appelez-nous	-
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	74003320		Glass, Inner	10			$ 86.35
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74001844		Retainer, Glass	10	Appelez-nous	-
8	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
9	74005041		Glass, Door (outer-bsq)	10	Appelez-nous	-
10	WP74009541		Screw (1/2``-bsq)   (Replaces: 74004976)	10			$ 6.26
10	74005042		Handle, Door (bsq)	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74005043		Trim, Door (lwr-bsq)	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	74004075		Tape	10	Appelez-nous	-
13	74005044		Trim, Door (side-bsq)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
