01 - Body
02 - Control Panel/top Assembly

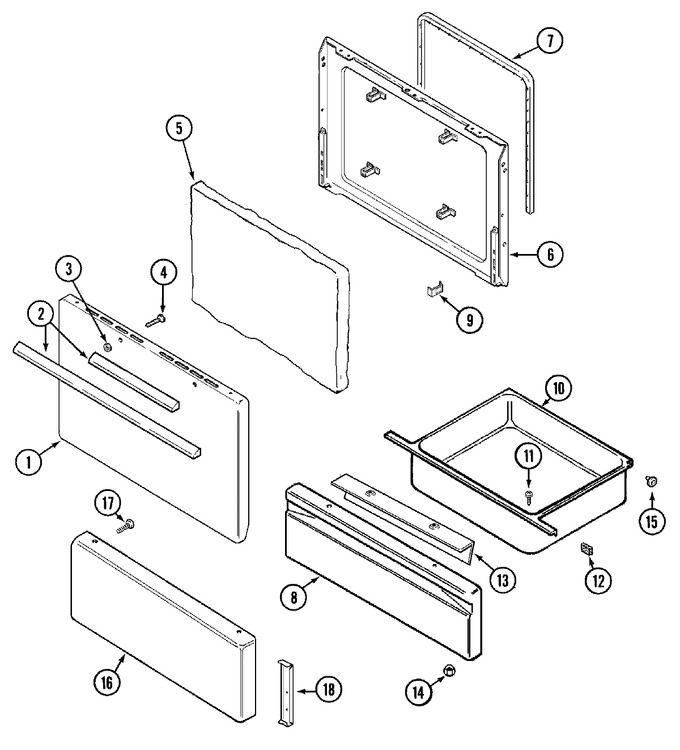

03 - Door/drawer
04 - Oven/base
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2401F096-74 | Panel, Door (alm) | 10 |
|
- | ||||
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | WP2411F013-70 | Handle, Door (chr) (Replaces: 74001819) | 10 |
|
$ 186.01 | ||||
| 3 | 8010P084-60 | Spacer, Handle (blk) | 10 |
|
- | ||||
| 4 | WP3387230 | Screw (Replaces: 74002483) | 10 |
|
Immediately | $ 7.69 | |||
| 5 | 4804F050-60 | Insulation, Door 2`` | 10 |
|
- | ||||
| 6 | 74003240 | Lining, Door | 10 |
|
- | ||||
| 8 | 74003522 | Panel, Drawer (alm) | 10 |
|
- | ||||
| 9 | 7112P034-60 | Clip, Door | 10 |
|
- | ||||
| 10 | 71003042 | Drawer, Storage | 10 |
|
- | ||||
| 11 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 10 |
|
$ 6.77 | ||||
| 12 | 8010P085-60 | Spacer, Rubber | 10 |
|
- | ||||
| 14 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 10 |
|
$ 4.00 | ||||
| 15 | WP488130 | Nut (Replaces: 7103P082-60) | 10 |
|
$ 6.27 | ||||
| 15 | 74003566 | Roller, Drawer | 10 |
|
- |
