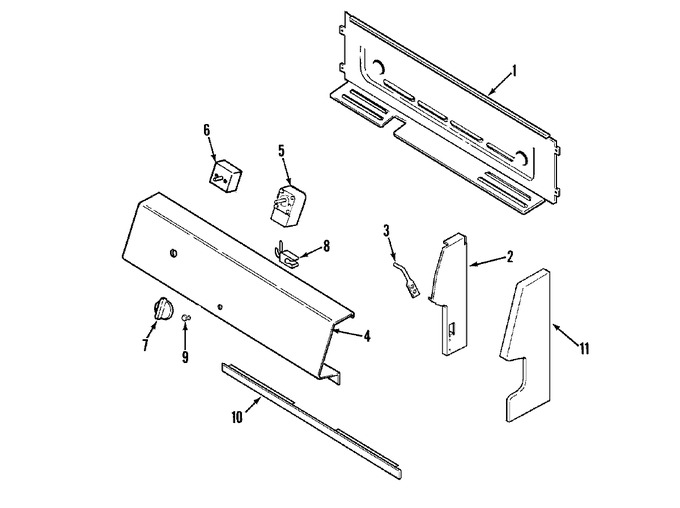

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003372		Housing, Control Panel	10	Appelez-nous	-
2	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
2	74003365		Support, Control Panel (rt)	10	Appelez-nous	-
2	74003366		Support, Control Panel (lt)	10	Appelez-nous	-
3	74003371		Hinge, Main Top (rod)	10	Appelez-nous	-
3	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
4	74003632		Panel, Control (blk)	10	Appelez-nous	-
5	7101P280-60		Screw W/washer (blk)	10	Appelez-nous	-
5	WP74005019		Thermostat   (Replaces: 74003409)	10			$ 197.50
6	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
6	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
6	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
7	74003427		Knob, Infinite Switch (blk)	10			$ 16.42
8	WP74004153		Light, Indicator   (Replaces: 7407P101-60)	10		Immediately	$ 8.02
9	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
10	74003374		Shield, Sight	10	Appelez-nous	-
10	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
11	74002432		Screw (1 3/16``-blk)	10	Appelez-nous	-
11	74003367		End Cap, Control Pnl (rt-blk)	10	Appelez-nous	-
11	74003368		End Cap, Control Pnl (lt-blk)	10	Appelez-nous	-
11	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
NI	12001323		Wire/terminal Kit	10	Appelez-nous	-
NI	74003402		Manual, Use & Care	10	Appelez-nous	-
NI	16000329		Guide, Quick Ref. - Magic Chef	10	Appelez-nous	-
