SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

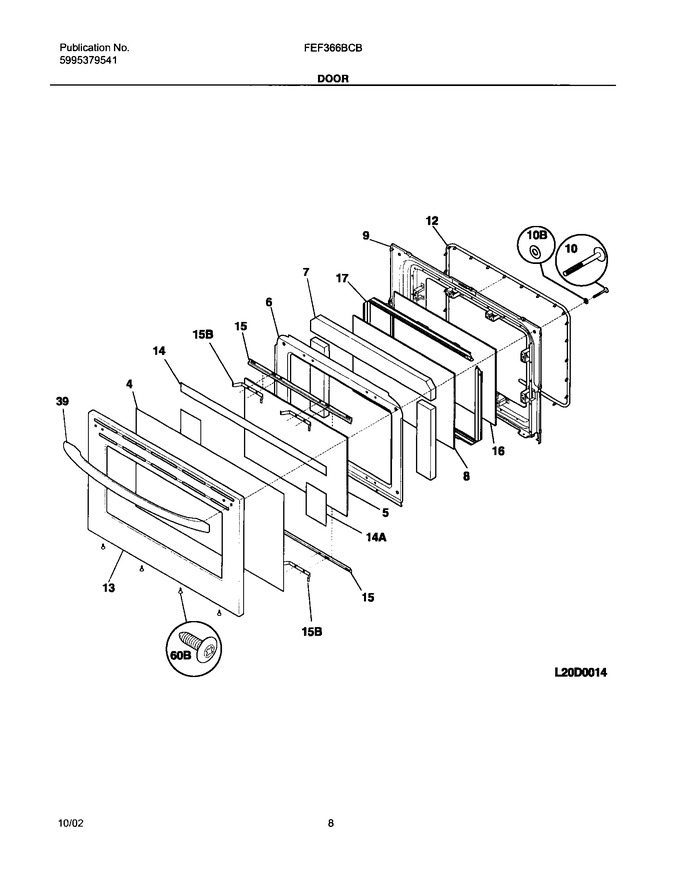

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240000		Glass,oven Door ,black ,outer				$ 273.62
5	316237000		Glass,oven Door ,air Wash		Appelez-nous	-
6	316222707		Shield-wool,oven Door				$ 122.01
7	316236700		Insulation,oven Door				$ 54.76
8	5304503232		Glass,oven Door ,clear ,heat Barrier   (Replaces: 316237100)				$ 116.95
9	316230605		Liner,oven Door		Appelez-nous	-
10	316001015		Screw,waf Hd Sq ,10-24 X 1.25 ,(2) ,handle Mtg				$ 9.45
12	316277900		Seal,oven Door   (Replaces: 316230901)				$ 138.92
13	316209401		Panel,oven Door ,stainless ,outer		Appelez-nous	-
14	316574603		Foil,1.5`` X 29`` ,aluminum ,black   (Replaces: 316102208)				$ 21.23
15	316237201		Bracket,glass Support ,(2)		Appelez-nous	-
16	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
17	316117701		Spacer,door Glass ,(2)				$ 53.66
39	316203000		Handle,door ,black		Appelez-nous	-
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
14A	316574601		Foil`4`` X 5.5`` ,aluminum ,black ,(2)   (Replaces: 316102205)				$ 2.98
15B	316085501		Bracket,glass Support				$ 41.74
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316065306		Plate Warning/caution		Appelez-nous	-
NI	316209000		Rivet,pop		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62

    View Diagram in Separate Window       Print Part List
