Diagram # Part Number Description Series Availability Ships Price Add to Cart
58 3200847 Insulation, Oven Bottom Appelez-nous -
59 3051344 Tube-oven Vent Appelez-nous -
62 5304409888 Terminal Block   (Replaces: 5306563359) In-Stock Immediately $ 26.69

63 5303212739 Plate-ground Strap Appelez-nous -
64 08067810 Filter Appelez-nous -
65 08010606 Retainer-catalyst Appelez-nous -
66 5303051140 Element-broil Special Order $ 202.71

67 316075103 Element-bake   (Replaces: 3203534) In-Stock Immediately $ 42.36

68 3051373 Support-element Appelez-nous -
71 3203549 Shield-rear Wall, Lower Appelez-nous -
72 5303285692 Cover-light Rod Appelez-nous -
82 3200825 Shield-wool Lower Appelez-nous -
87 5303206618 Bracket-cable Mtg Appelez-nous -
*65642 3203550 Plug-button In-Stock Immediately $ 15.22

58A 3200833 Insulation, Oven Wrapper Appelez-nous -
58B 3204582 Insulation, Oven Back Appelez-nous -
58C 3131304 Insulation, Oven Top Appelez-nous -
71A 08067961 Fastener-power Cord Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

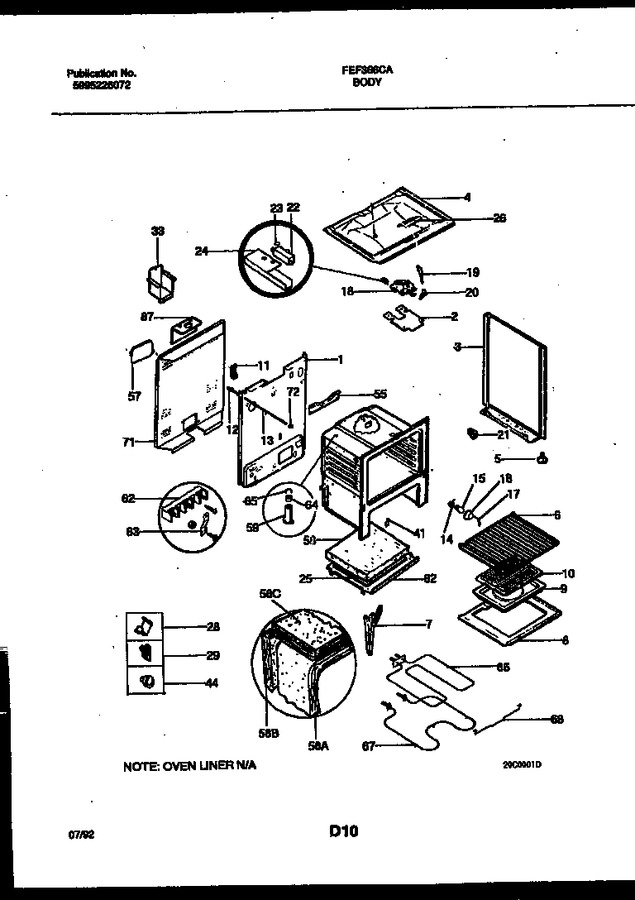

Diagram for FEF366CASA
