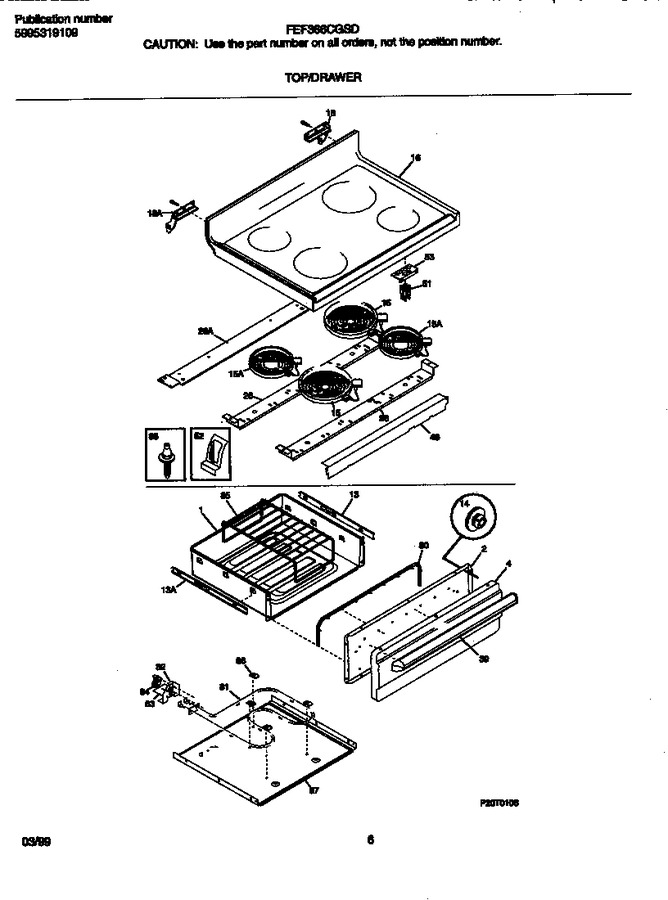

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316094601		Drawer-warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
4	316056201		Panel-drawer,white		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
13	316094901		Rail-drawer Rh,outer		Appelez-nous	-
13	316094900		Rail,drawer ,rh Outer		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
15	318198834		Element-surface,radiant , Large/8 Inch ,2100w,limit Sw I   (Replaces: 316010204)				$ 205.36
15	318198817		Element-surface, Radiant, Small/6 Inch ,1200w,limit Sw I   (Replaces: 316010203)			Immediately	$ 192.78
16	316098105		Main Top, White		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
26	316099201		Bracket-support, Chassis		Appelez-nous	-
39	316026106		Handle-drawer,white		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316100200		Shield-wire, Main Top		Appelez-nous	-
51	80142193		Indicator Light		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
53	316099300		Bracket-indicator Light, Hot Surface, 4 Hole		Appelez-nous	-
80	316109700		Seal-door,warmer Drawer				$ 106.16
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield-terminal, Warmer		Appelez-nous	-
84	316093500		Thermo Disc, Warmer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base-warmer				$ 221.55
87	316091902		Base-warmer		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
124	316096500		Channel,drawer ,rh,inner		Appelez-nous	-
124	316096501		Channel Drawer,lh,inner		Appelez-nous	-
*41452	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*41453	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*41454	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*41455	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*41456	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*41457	5309951550		Cleaner-cooktop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
