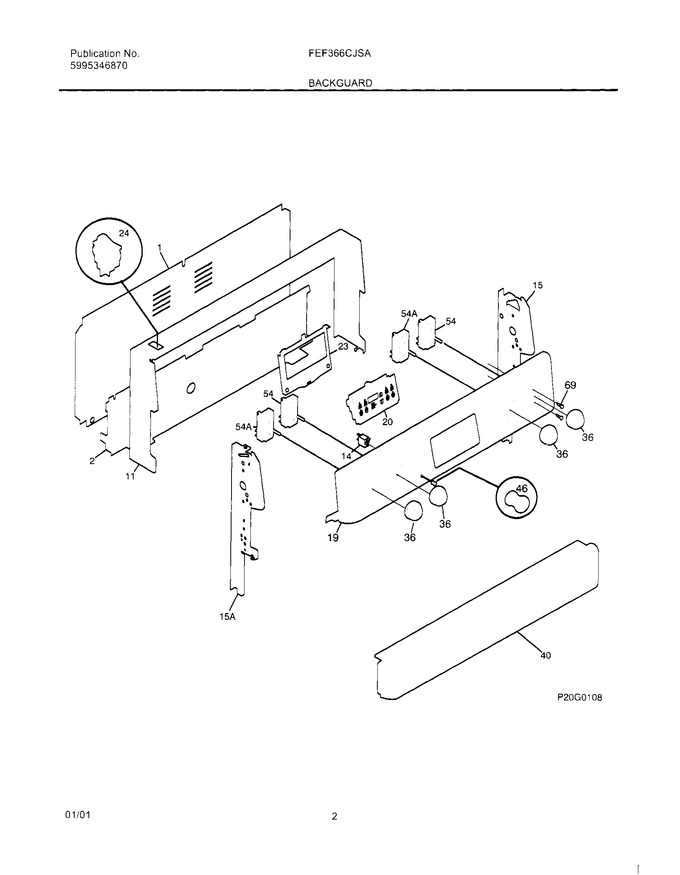

03 - Backguard


05 - Door


07 - Body


09 - Top/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081600		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316083721		Trim-wrapper,textured ,white ,w/switch Hole		Appelez-nous	-
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100535		Panel-backguard, White,white		Appelez-nous	-
20	316101502		Overlay-clock,white				$ 108.15
20	316101001		Clock/timer, Electronic				$ 419.79
23	316100301		Bracket-timer		Appelez-nous	-
24	5304527842		Switch-oven Light,rocker ,white   (Replaces: 316118101)			Immediately	$ 16.13
36	316025106		Knob-control, Infinite Sw, White				$ 57.64
40	316025808		Panel-manifold,white		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
69	5303292005		Screw,8-32 X 5/32 ,switch/handle		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
