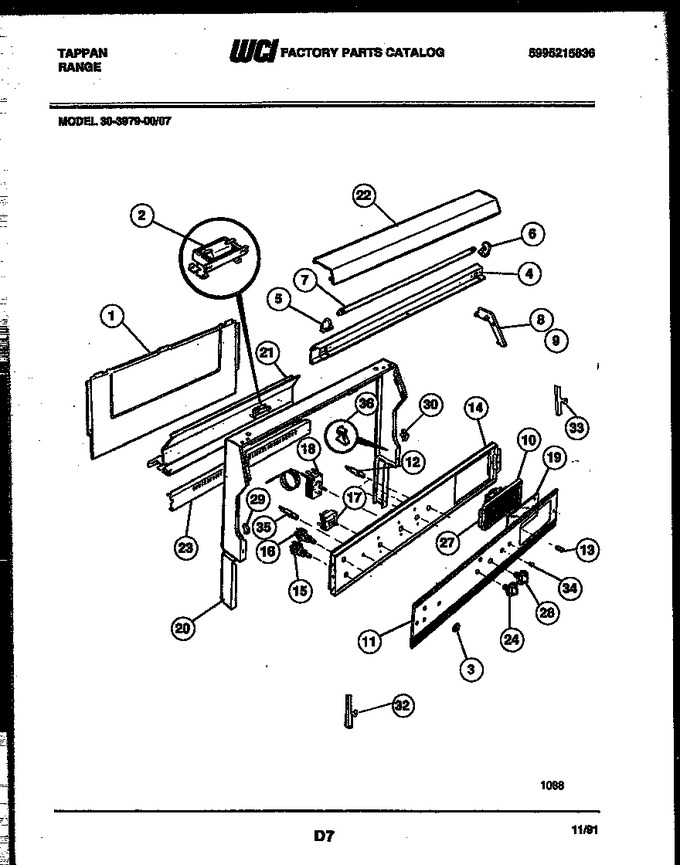

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 2 | 5303051115 | Ballast |
|
- | |||||
| 3 | 5303011507 | Bezel, Switch (2) |
|
$ 21.47 | |||||
| 4 | 3131277 | Support, Fluorescent |
|
- | |||||
| 5 | 3051222 | Receptacle Fluor Light Rh |
|
- | |||||
| 6 | 3051223 | Receptacle Fluor Light Lh |
|
- | |||||
| 7 | 3131275 | Bulb-fluorescent |
|
$ 49.40 | |||||
| 8 | 3204609 | Cap End-lh-trim Canopy |
|
- | |||||
| 9 | 3204610 | Cap End-rh-trim Canopy |
|
- | |||||
| 10 | 3204766 | Electrical Clock |
|
- | |||||
| 11 | 3205466 | Control Panel |
|
- | |||||
| 12 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 13 | 3131472 | Knob-clock (3) |
|
- | |||||
| 14 | 5303274449 | Plate Instr Mounting |
|
- | |||||
| 15 | 5303200479 | Switch Oven Light |
|
$ 7.04 | |||||
| 16 | 5303200480 | Switch Fl Light |
|
$ 125.53 | |||||
| 17 | 5303212678 | Switch Selector |
|
- | |||||
| 18 | 5303271746 | Thermostat-bake |
|
$ 414.28 | |||||
| 19 | 3201695 | Glass-clock Lens |
|
- | |||||
| 20 | 3204862 | Trim - Wrapper |
|
- | |||||
| 21 | 3201701 | Trim-lwr Splshr (white) |
|
- | |||||
| 22 | 3204614 | Trim - Canopy |
|
- | |||||
| 23 | 3131241 | Trim-vent |
|
- | |||||
| 24 | 3205464 | Knob Thermostat |
|
- | |||||
| 27 | 3201700 | Retainer Clock Lens |
|
- | |||||
| 28 | 3205465 | Knob-selector Switch |
|
- | |||||
| 29 | 3203076 | Cap-lh |
|
- | |||||
| 30 | 3203077 | Cap-rh |
|
- | |||||
| 32 | 3204753 | Trim-glass Retainer,lh |
|
- | |||||
| 33 | 3204754 | Trim-glass Retainer,rh |
|
- | |||||
| 34 | 5308037703 | Jewel-indicator Lens (3) |
|
- | |||||
| 35 | 3201728 | Indicator Light-lock (1) |
|
- | |||||
| 36 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 35A | 3131468 | Bracket-backguard (non-illustrated) |
|
- | |||||
| 35B | 3204745 | Bushing-control Shaft (non-illustrated) |
|
- | |||||
| 35C | 3051224 | Retainer-lens (non-illustrated) |
|
- | |||||
| 35D | 3016408 | Spacer-tube (non-illustrated) |
|
- |
