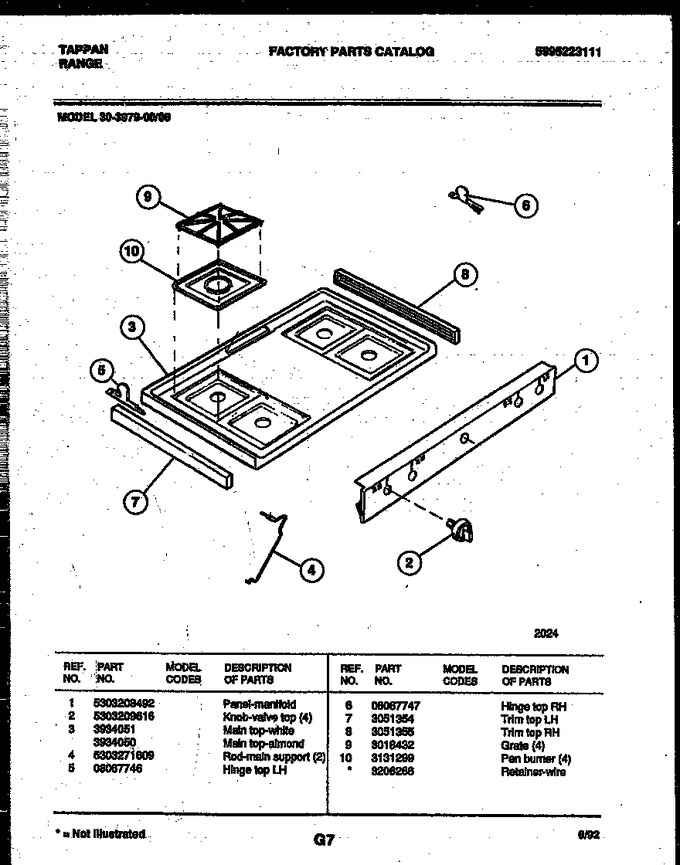

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303208492 | Panel, Manifold |
|
- | |||||
| 2 | 5303209616 | Knob-valve Top (4) |
|
- | |||||
| 3 | 3934051 | Main-top (white) |
|
- | |||||
| 4 | 5303271609 | Rod-main Support (2) |
|
- | |||||
| 5 | 08067746 | Hinge-top Lh |
|
- | |||||
| 6 | 08067747 | Hinge-top Rh |
|
- | |||||
| 7 | 3051354 | Trim-top Lh |
|
- | |||||
| 8 | 3051355 | Trim-top Rh |
|
- | |||||
| 9 | 3018432 | Grate (4) |
|
- | |||||
| 10 | 3131299 | Pan-burner (4) |
|
- | |||||
| *72093 | 3206266 | Retainer Wire |
|
- |
