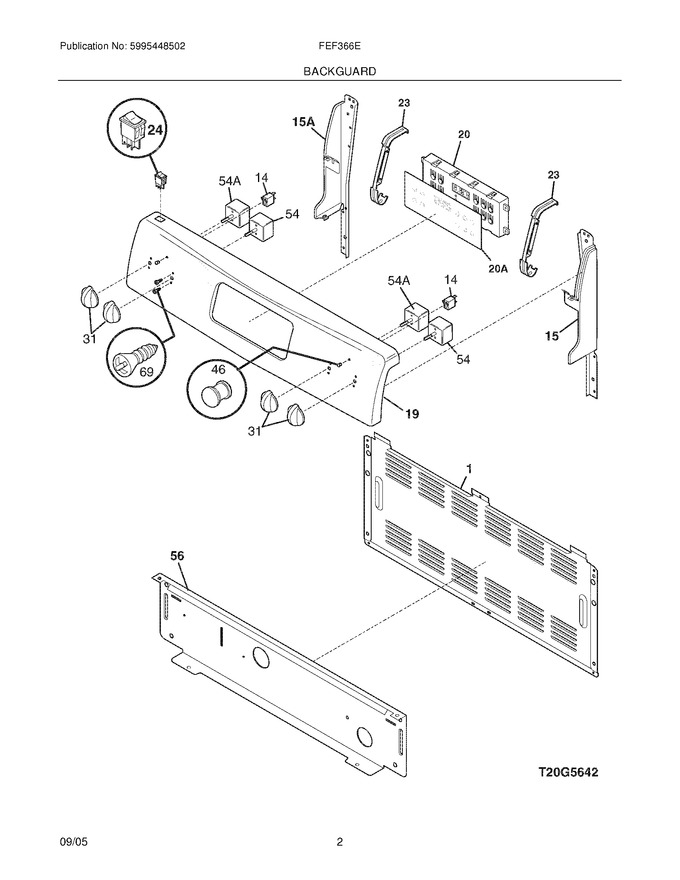

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316445209		Panel-backguard,black				$ 226.43
23	316441600		Bracket-clock Mtg,black				$ 20.48
31	316223002		Knob,control ,black			Immediately	$ 57.64
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
56	316234045		Shield,backguard ,black ,inner   (Replaces: 316234013)				$ 66.74
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419141		Overlay,clock ,black ,es300   (Replaces: 316419103)			Immediately	$ 56.87
F20	5304509493		Clock/timer,electronic ,es300   (Replaces: 316418200)			Immediately	$ 212.37
F24	5304527841		Switch,rocker ,black   (Replaces: 316246001)			Immediately	$ 11.38
F54	316436000		Switch,infinite ,small Element			Immediately	$ 80.34
F54A	316436001		Switch,infinite ,large Element			Immediately	$ 51.68
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
