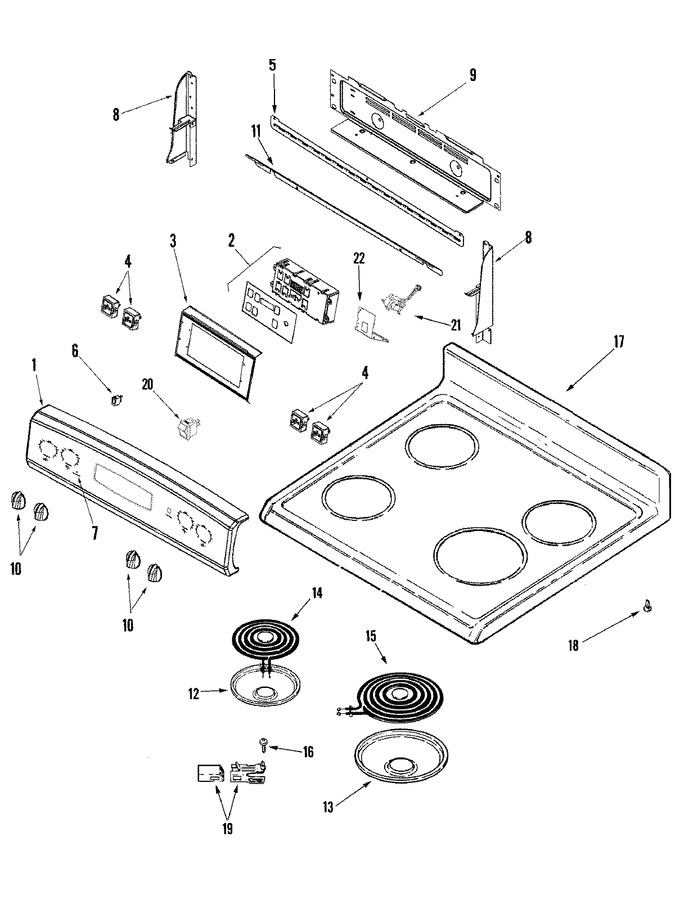

01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer
04 - Oven/base
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010339 | Panel, Backguard (wht) | 10 |
|
- | ||||
| 2 | 74011323 | Clock W/overlay (wht) | 10 |
|
- | ||||
| 2 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 3 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 3 | 74008716 | Bracket, Clock | 10 |
|
- | ||||
| 4 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 4 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 4 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 5 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 74009701 | Shield, Rear Sight | 10 |
|
- | ||||
| 6 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 7 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 8 | WP98008544 | Screw (wht) (Replaces: 74009540) | 10 |
|
$ 11.89 | ||||
| 8 | 74010713 | Support, Backguard (lt-wht) | 10 |
|
- | ||||
| 8 | 74010212 | Support, Backguard (rt-wht) | 10 |
|
- | ||||
| 9 | 74010983 | Cover, Rear Wire | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74010331 | Knob (wht) | 10 |
|
$ 16.58 | ||||
| 11 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74009978 | Shield, Wire | 10 |
|
- | ||||
| 12 | WPW10196406 | Bowl, Drip (6``-chr) (Replaces: 74001212) | 10 |
|
Immediately | $ 12.05 | |||
| 12 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 10 |
|
Immediately | $ 12.05 | |||
| 13 | WPW10196405 | Bowl, Drip (8``-chr) (Replaces: 74001213) | 10 |
|
Immediately | $ 15.56 | |||
| 14 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 10 |
|
Immediately | $ 112.28 | |||
| 15 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 10 |
|
Immediately | $ 165.96 | |||
| 16 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 17 | 8019P013-60 | Clip, Wire Lock (Replaces: 74006811) | 10 |
|
$ 13.46 | ||||
| 17 | 74003428 | Top, Main (wht) | 10 |
|
- | ||||
| 18 | W11189172 | Glide, Main Top (Replaces: 74004558) | 10 |
|
Immediately | $ 15.09 | |||
| 19 | WP74007474 | Receptacle Assy (Replaces: 74007474) | 10 |
|
Immediately | $ 129.78 | |||
| 20 | 74008717 | Switch, Rocker (wht) | 10 |
|
$ 72.68 | ||||
| 21 | 74011032 | Transformer, Step Down | 10 |
|
- | ||||
| 22 | 74011325 | Bracket, Transformer Mount | 10 |
|
- | ||||
| 22 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 |
