01 - Body
02 - Door/drawer
03 - Oven/base
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:

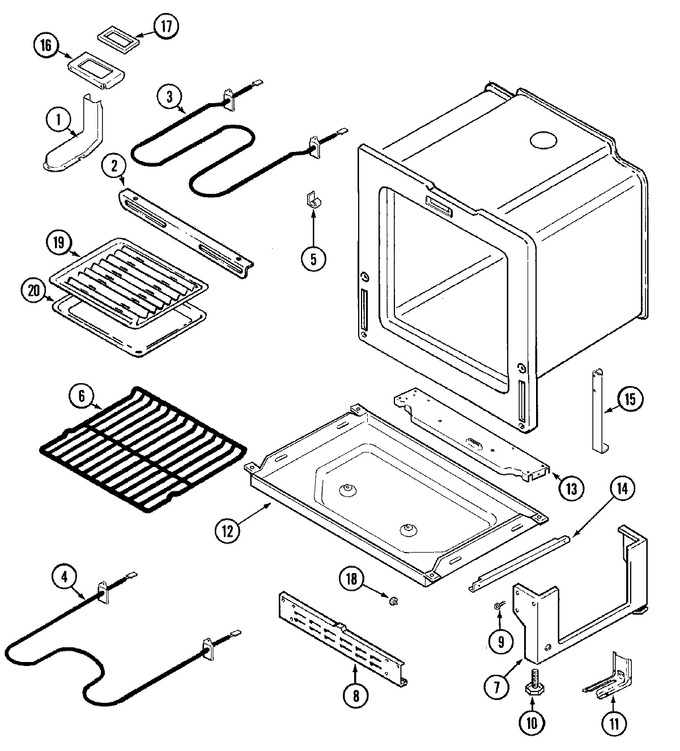

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004170 | Box, Vent | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74003386 | Support, Broil Element | 10 |
|
- | ||||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | WPW10310249 | Element, Broil (4 Pass) (Replaces: 74003041) | 10 |
|
Immediately | $ 112.33 | |||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | WP74010750 | Element, Bake (Replaces: 74003039) | 10 |
|
Immediately | $ 47.69 | |||
| 5 | WP7112P004-60 | Clip, Thermostat Bulb (Replaces: 790055) | 10 |
|
Immediately | $ 11.07 | |||
| 6 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 10 |
|
Immediately | $ 65.15 | |||
| 7 | 74003405 | Pedestal, Side | 10 |
|
- | ||||
| 8 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | W11665456 | Leg, Leveling (Replaces: 74002557) | 10 |
|
Immediately | $ 25.30 | |||
| 11 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74002311) | 10 |
|
Immediately | $ 4.69 | |||
| 11 | WP7101P485-60 | Screw (Replaces: 7101P352-60) | 10 |
|
$ 26.33 | ||||
| 12 | 74004169 | Retainer, Insulation (lower) | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 74004167 | Support | 10 |
|
- | ||||
| 14 | 74003565 | Runner, Drawer | 10 |
|
- | ||||
| 14 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74004171 | Support, Oven | 10 |
|
- | ||||
| 16 | 74004178 | Plate, Vent | 10 |
|
- | ||||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 17 | 74004179 | Gasket, Vent | 10 |
|
- | ||||
| 18 | 74004079 | Shaft, Roller | 10 |
|
- | ||||
| 18 | WP488130 | Nut (Replaces: 7103P082-60) | 10 |
|
$ 6.27 | ||||
| 18 | WP74004078 | Roller, Drawer (Replaces: 74004078) | 10 |
|
Immediately | $ 10.70 | |||
| 19 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 20 | Y3401F02019 | Pan, Broil | 10 |
|
- |
