02 - Backguard
03 - Cooktop Parts
04 - Door Parts

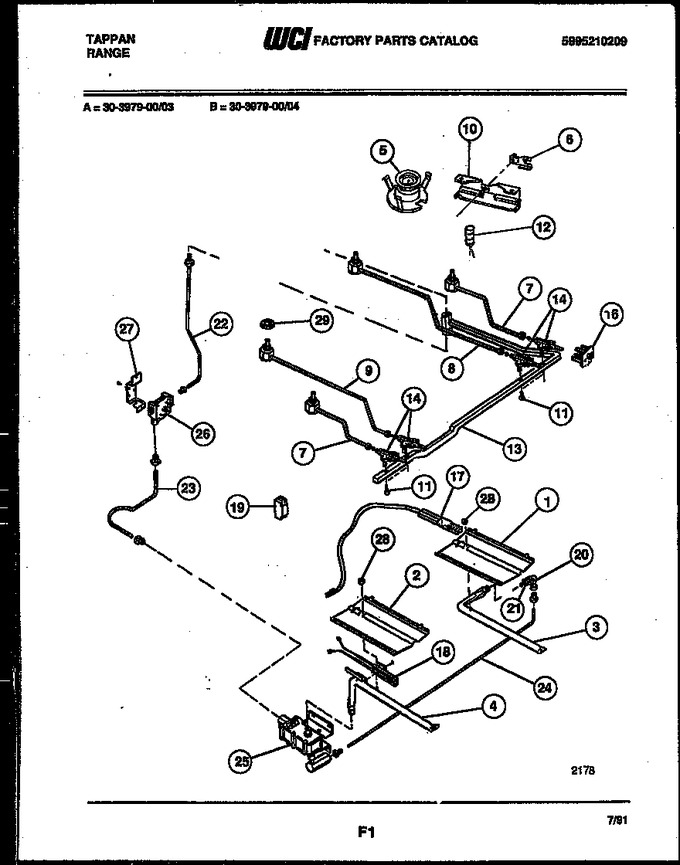

05 - Burner, Manifold And Gas Control
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210379 | Baffle, Broil |
|
$ 175.88 | |||||
| 2 | 3131284 | Baffle-oven |
|
$ 155.77 | |||||
| 3 | 08067935 | Burner-broiler |
|
$ 142.59 | |||||
| 4 | 3131290 | Burner-oven |
|
- | |||||
| 5 | 5303011567 | Burner Top (4) |
|
- | |||||
| 6 | 3018617 | Retainer, Igniter |
|
- | |||||
| 7 | 5303131970 | Burner - Tube Lf, Rf |
|
- | |||||
| 8 | 5303011569 | Burner-tube-rr |
|
- | |||||
| 9 | 5303011570 | Burner-tube-lr |
|
- | |||||
| 10 | 3206267 | Channel-flash Tube (2) |
|
$ 46.04 | |||||
| 12 | 3206267 | Channel-flash Tube (2) |
|
$ 46.04 | |||||
| 13 | 3131440 | Manifold Pipe |
|
- | |||||
| 14 | 5303017846 | Valve-top (3 Pos) |
|
$ 162.02 | |||||
| 16 | 5303131580 | Switch-igniter (4) |
|
- | |||||
| 17 | 5303935068 | Igniter-broiler Burner (Replaces: 5308067970) |
|
$ 166.55 | |||||
| 18 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 19 | 5303200669 | Igniter-module |
|
- | |||||
| 20 | 5303208640 | Mixer Elbow |
|
- | |||||
| 21 | 3131358 | Nut-hex |
|
- | |||||
| 22 | 5303208495 | Tube Alum Regul/manif Pipe W/ Fitting |
|
- | |||||
| 23 | 5303208494 | Tube Alum Valve/regul W/ Fitting |
|
- | |||||
| 24 | 5303208493 | Tube Alum Valve/mixer W/ Fitting |
|
- | |||||
| 25 | 5393208499 | Valve Safety-dual |
|
- | |||||
| 26 | 5303208498 | Control, Regulator |
|
- | |||||
| 27 | 08067934 | Brkt Regulator |
|
- | |||||
| 28 | 3013272 | Nut |
|
- | |||||
| 29 | 3013279 | Nut, Special |
|
$ 2.34 | |||||
| *57732 | 08067945 | Ferrule (4) |
|
- | |||||
| 14A | 08067948 | Elbow 1/2 Np (non-illustrated) |
|
- | |||||
| 14B | 3131148 | Nut, Compression (4) (non-illustrated) |
|
- |
