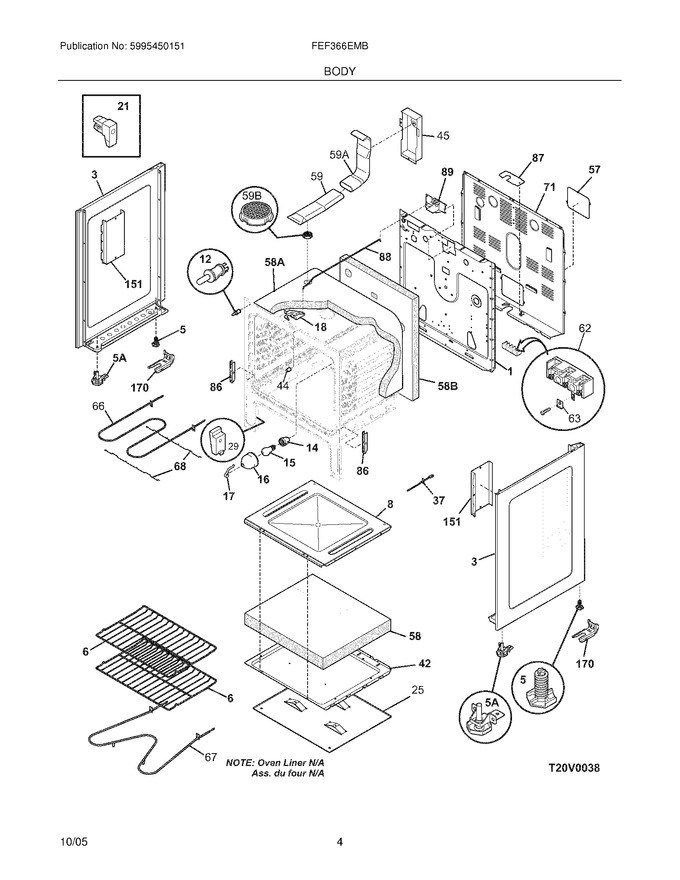

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316401800 | Panel,main Back |
|
- | |||||
| 3 | 316400144 | Panel,bodyside ,black ,rh (Replaces: 316400118) |
|
Immediately | $ 134.69 | ||||
| 3 | 316400145 | Panel,bodyside ,black ,lh (Replaces: 316400119) |
|
Immediately | $ 133.93 | ||||
| 5 | 316272900 | Screw,leveling ,plastic ,rear ,(2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316404500 | Rack,oven |
|
$ 124.95 | |||||
| 8 | 316400601 | Panel,oven Bottom |
|
$ 125.87 | |||||
| 12 | 316445501 | Switch,oven Light ,door Frame |
|
$ 90.01 | |||||
| 14 | 316116400 | Receptacle,oven Light |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 316087500 | Retainer,lens |
|
$ 56.70 | |||||
| 21 | 316408000 | Clip,bodyside |
|
$ 18.20 | |||||
| 25 | 5303289914 | Shield-heat Lower |
|
- | |||||
| 29 | 807047102 | Glide,drawer ,front (Replaces: 316407301) |
|
Immediately | $ 23.82 | ||||
| 42 | 316407700 | Shield,wool ,lower |
|
$ 131.19 | |||||
| 44 | 316246501 | Spacer,oven Door |
|
$ 12.13 | |||||
| 45 | 316234100 | Shield,wire ,vent Tube |
|
$ 70.16 | |||||
| 57 | 316422400 | Cover,access |
|
- | |||||
| 58 | 316403800 | Insulation,oven Bottom |
|
- | |||||
| 59 | 316208201 | Tube,oven Vent ,lower |
|
$ 77.26 | |||||
| 62 | 5303935238 | Terminal Block Kit,w/ground Plate |
|
$ 101.35 | |||||
| 63 | 316278800 | Plate,grounding Strap |
|
- | |||||
| 66 | 316203200 | Element-broil |
|
Immediately | $ 164.45 | ||||
| 67 | 316075103 | Element-bake |
|
Immediately | $ 42.36 | ||||
| 68 | 316404002 | Support,element ,broil (Replaces: 316404000) |
|
$ 8.75 | |||||
| 71 | 316422300 | Shield,rear Wall |
|
- | |||||
| 86 | 316441300 | Receptacle,hinge |
|
$ 21.97 | |||||
| 87 | 316081200 | Bracket,cable Mtg |
|
- | |||||
| 88 | 316203500 | Rod,auto Latch |
|
$ 72.30 | |||||
| 151 | 316404600 | Shield,bodyside |
|
$ 49.30 | |||||
| 170 | 316116000 | Screw,concrete ,1.75`` ,anti-tip Brkt |
|
$ 12.89 | |||||
| 170 | 316112005 | Bracket,anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| 170 | 316112500 | Template,anti-tip |
|
$ 3.55 | |||||
| 170 | 316112005 | Anti-tip Kit,w/bracket,screw (Replaces: 5303935180) |
|
Immediately | $ 18.91 | ||||
| 58A | 316406604 | Insulation,oven Wrapper (Replaces: 316406600) |
|
Immediately | $ 69.77 | ||||
| 58B | 316406500 | Insulation,oven Back |
|
$ 88.60 | |||||
| 59A | 316208304 | Tube,oven Vent ,upper |
|
$ 80.09 | |||||
| 59B | 316247300 | Catalyst,oven Vent ,ceramic |
|
$ 99.23 | |||||
| 5A | 5304509869 | Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg (Replaces: 316407201) |
|
Immediately | $ 15.08 | ||||
| F18 | 316405800 | Latch Assembly,oven Door |
|
Immediately | $ 56.74 | ||||
| F37 | 316490001 | Probe,oven Temp (Replaces: 316217001) |
|
Immediately | $ 68.80 | ||||
| F89 | 5304528973 | Motor,latch/lock (Replaces: 316415400) |
|
Immediately | $ 52.34 | ||||
| NI | 316418901 | Screw,trilobe ,10-32 X 5/16`` |
|
$ 14.18 | |||||
| NI | 316205500 | Nut,hex Flange ,3/8 10-32 |
|
$ 11.34 | |||||
| NI | 316085600 | Insulator |
|
- | |||||
| NI | 316416422 | Harness,wiring ,main |
|
- | |||||
| NI | 3203550 | Plug,button ,oven Bottom |
|
Immediately | $ 15.22 | ||||
| NI | 5303321321 | Paint,touch-up ,black (Replaces: 5303305345) |
|
Immediately | $ 21.97 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5303285179 | Screw,wafer Head `8-32t X 0.500 ,black |
|
$ 13.46 | |||||
| NI | 5308014215 | Screw`6-20 X 0.312 |
|
$ 2.28 |
