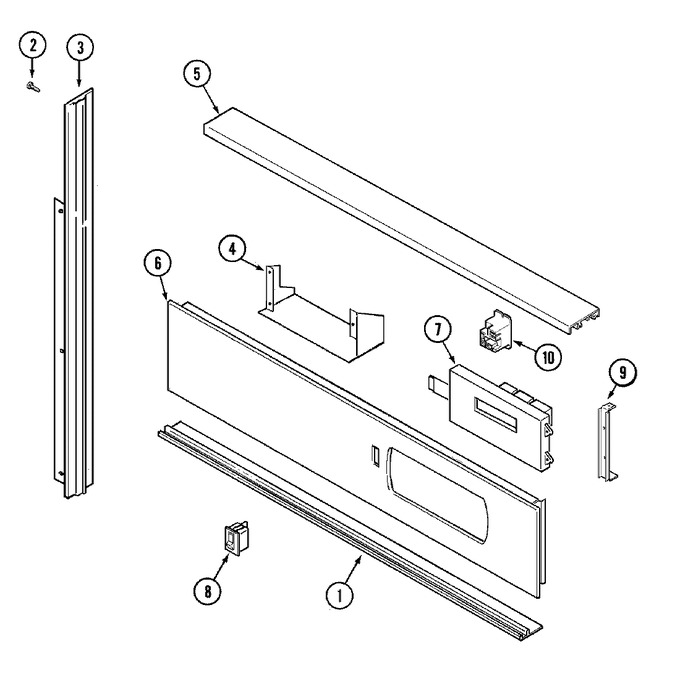

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71003299 | Trim, Vent (blk) | 10 |
|
- | ||||
| 2 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 3 | 74004959 | Trim, Side (rt-blk) | 12 |
|
- | ||||
| 3 | 71003309 | Trim, Side (rt-blk) | 10 |
|
- | ||||
| 3 | 71003308 | Trim, Side (lt-blk) | 10 |
|
- | ||||
| 3 | 74004958 | Trim, Side (lt-blk) | 12 |
|
- | ||||
| 4 | 71003304 | Insulation, Fiberboard | 10 |
|
- | ||||
| 5 | 71003301 | Trim, Top (blk) | 10 |
|
- | ||||
| 6 | 74004099 | Panel, Control (blk) | 10 |
|
- | ||||
| 7 | 71003315 | Clock (blk) | 10 |
|
- | ||||
| 7 | 74004101 | Overlay, Clock (blk) | 10 |
|
- | ||||
| 8 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 9 | 71003305 | Bracket, Clock Mounting | 10 |
|
- | ||||
| 10 | WP74003482 | Relay, Auxillary (Replaces: 74003482) | 10 |
|
$ 153.21 | ||||
| NI | 74001387 | Screw (blk) | 10 |
|
- | ||||
| NI | 74001394 | Spacer, Mtg. Adapter (blk) | 10 |
|
- | ||||
| NI | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| NI | 74004103 | Manual, Use & Care (fch) | 10 |
|
- | ||||
| NI | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- | ||||
| NI | 71003317 | Harness, Main | 10 |
|
- |
