SELECT A DIAGRAM
01 - Body

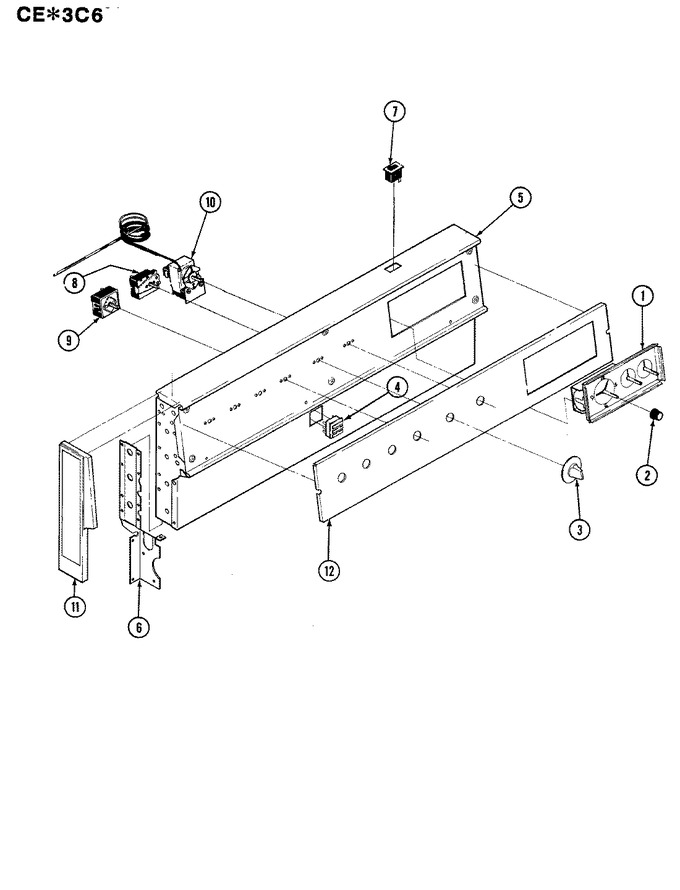

02 - Control Panel
03 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P109-60 | Glass, Clock | 1 |
|
- | ||||
| 1 | 7601P044-60 | + Clock | 1 |
|
- | ||||
| 1 | 7501P002-60 | Valve, Oven | 1 |
|
- | ||||
| 2 | 7711P183-60 | Knob, Thermostat | 1 |
|
- | ||||
| 2 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 3 | 7711P088-60 | Knob, Selector | 1 |
|
- | ||||
| 3 | 7711P029-60 | Knob, Switch | 1 |
|
- | ||||
| 4 | 7407P011-60 | Light, Indicator | 1 |
|
- | ||||
| 5 | 2601W180-81 | Panel, Bkgd White | 1 |
|
- | ||||
| 5 | 4005F196-80 | Cover, Backguard Wire | 1 |
|
- | ||||
| 5 | 2601W180-86 | Panel, Bkgd Hvt Wheat | 1 |
|
- | ||||
| 5 | 2601W180-84 | Panel, Bkgd Almond | 1 |
|
- | ||||
| 6 | 3807F010-80 | Support | 1 |
|
- | ||||
| 6 | 3807F012-80 | Support | 1 |
|
- | ||||
| 7 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 8 | 7403P173-60 | Switch, Selector | 1 |
|
- | ||||
| 9 | 7403P170-60 | Switch, Inf. Control | 1 |
|
- | ||||
| 10 | 7404P030-60 | Thermostat | 1 |
|
- | ||||
| 11 | 7726P032-60 | Trim, Bkgd End (rt) | 1 |
|
- | ||||
| 11 | 7726P031-60 | Trim, Bkgd End (lt) | 1 |
|
- | ||||
| 12 | 7720P089-60 | Trim, Glass Retainer | 1 |
|
- | ||||
| 12 | 7703P195-60 | Trim Bkgd | 1 |
|
- |
