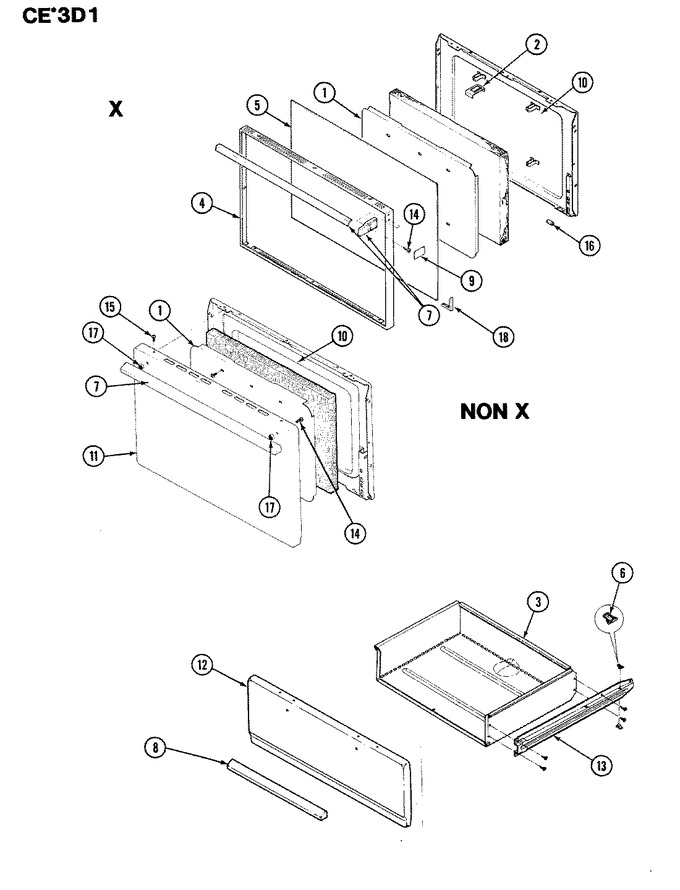

01 - Body
02 - Control Panel
03 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F026-51 | Baffle | 1 |
|
- | ||||
| 1 | 3802F044-51 | Brace, Drawer | 1 |
|
- | ||||
| 1 | 3801F031-51 | Bracket | 1 |
|
- | ||||
| 1 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 3 | 3405F008-80 | Drawer, Service | 1 |
|
- | ||||
| 6 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 7 | 7701P030-60 | Handle, Door (chr) | 1 |
|
- | ||||
| 8 | 7701P002-60 | Handle, Door | 1 |
|
- | ||||
| 8 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 1 |
|
$ 6.77 | ||||
| 8 | M0282009 | Nut (Replaces: 7103P064-60) | 1 |
|
$ 12.06 | ||||
| 10 | 2402W090-23 | Lining Assy, Ov Dr | 1 |
|
- | ||||
| 11 | 2401F041-74 | Panel, Oven Dr-a | 1 |
|
- | ||||
| 11 | 2401F041-71 | Panel, Oven Dr-n | 1 |
|
- | ||||
| 12 | 2416F006-74 | Panel, Service Drawer Almond | 1 |
|
- | ||||
| 12 | 2416F006-71 | Panel, Service Drawer White | 1 |
|
- | ||||
| 13 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 14 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 1 |
|
Immediately | $ 7.69 | |||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 17 | 8010P002-60 | Spacer, Handle | 1 |
|
- |
