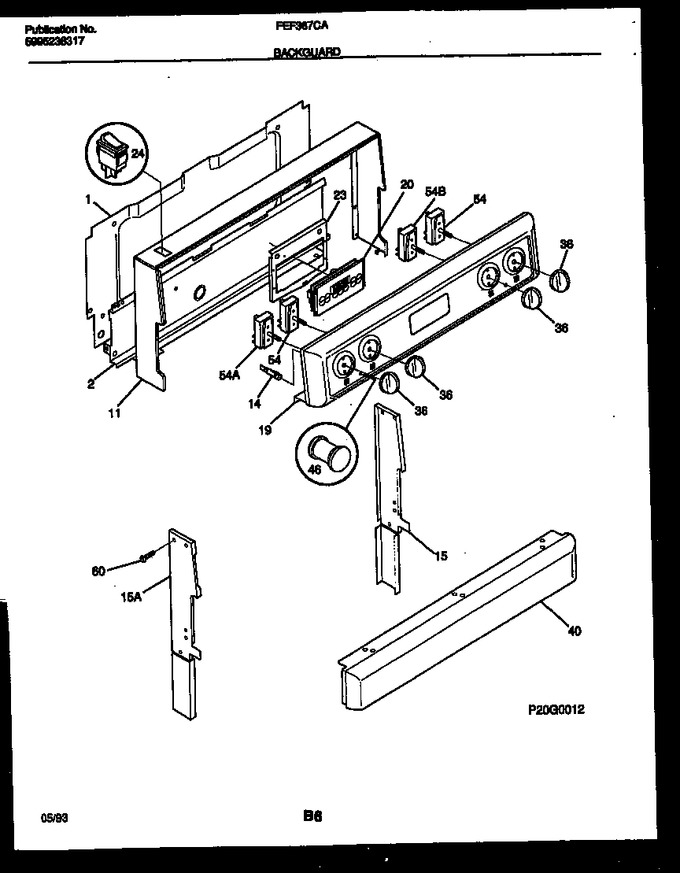

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316015701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316034302		Trim-wrapper, Black		Appelez-nous	-
14	316022502		Light/lamp, Indicator, 250 V, (3)		Appelez-nous	-
15	316023102		Support-backguard, Rh		Appelez-nous	-
19	316024410		Panel-control, Metal		Appelez-nous	-
20	316027200		Clock/timer, Eoc, Membrane		Appelez-nous	-
23	316033201		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker, Black   (Replaces: 316005602)			Immediately	$ 11.38
36	316025100		Knob-control, Infinite Sw		Appelez-nous	-
40	316025800		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
14A	316034800		Light/lamp, Ind, Hot Surface (non-illustrated)		Appelez-nous	-
14B	316035700		Lens-light/lamp, Indicator (non-illustrated)		Appelez-nous	-
15A	316023103		Support-backguard, Lh		Appelez-nous	-
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54B	316023700		Switch-dual Element		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
