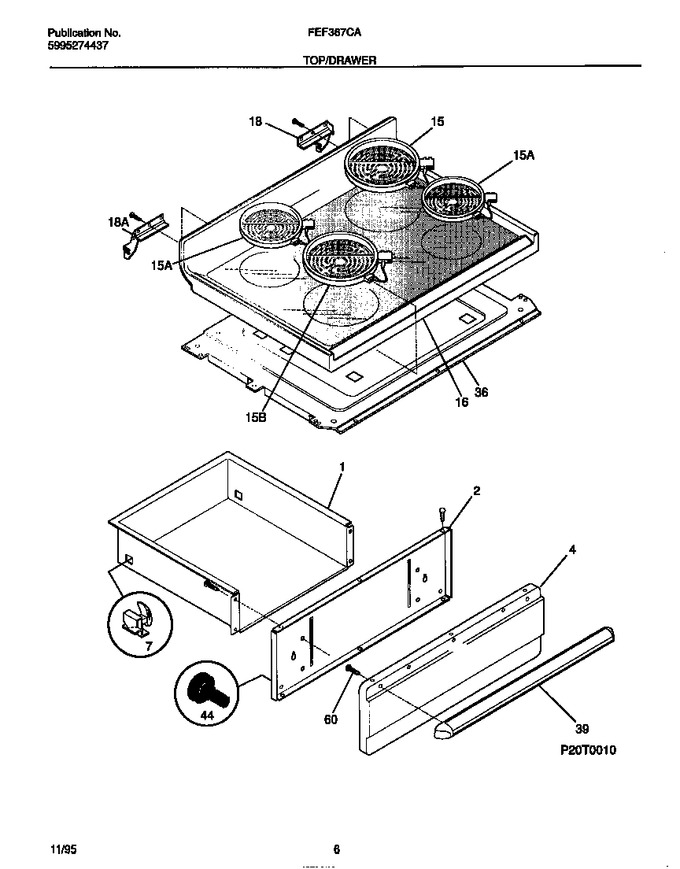

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056207		Panel-drawer, Black		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316049700		Element-surface, Dual Coil, 8 Inch, W/limit Switch		Appelez-nous	-
16	316035509		Main Top, Black		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
39	316026100		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*97846	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*97847	316001729		Harness-top Elements		Appelez-nous	-
*97848	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*97849	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*97850	5309951550		Cleaner-cooktop		Appelez-nous	-
15A	318198817		Element, Surface, Coil, Small/6 Inch, W/limit Switch   (Replaces: 316010200)			Immediately	$ 192.78
15A	318198834		Element-surface, Coil, Large / 8 Inch, W/limit Switch   (Replaces: 316010202)				$ 205.36
15B	5303305629		Limiter Switch, Large/8 Inch (not Illustrated)		Appelez-nous	-
15B	5303305628		Limiter Switch, Small/6 Inch (not Illustrated)		Appelez-nous	-
36A	316033610		Panel-element Mtg, Glass Top		Appelez-nous	-
36B	316023301		Clip-spring, Element Mtg, (4) (not Illustrated)		Appelez-nous	-
36C	316041001		Stud-index, Top Element (not Illustrated)		Appelez-nous	-
