SELECT A DIAGRAM
01 - Body

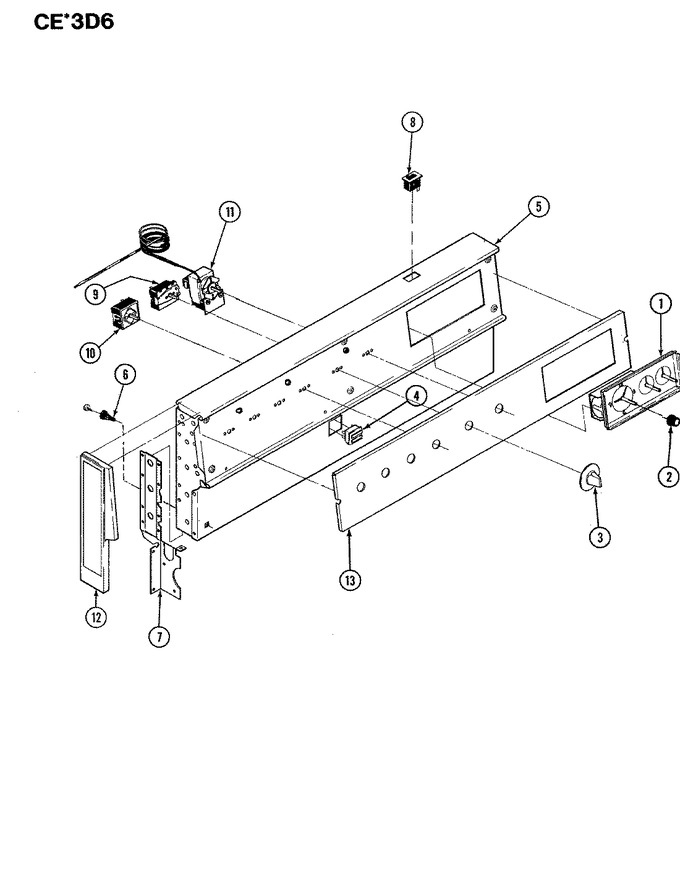

02 - Control Panel
03 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7112P007-60 | Clip | 1 |
|
- | ||||
| 1 | 7601P131-60 | Clock | 1 |
|
- | ||||
| 2 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 2 | 7711P321-60 | Knob, Switch | 1 |
|
- | ||||
| 3 | 7711P320-60 | Knob | 1 |
|
- | ||||
| 3 | 7711P321-60 | Knob, Switch | 1 |
|
- | ||||
| 4 | 7407P068-60 | Light, Signal | 1 |
|
- | ||||
| 4 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 5 | 4005F283-80 | Cover, Shield Bkgd Wire | 1 |
|
- | ||||
| 5 | 2601W263-81 | Backguard Assy, White | 1 |
|
- | ||||
| 6 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 6 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 7 | 3807F348-51 | Support, Bkgd End Lf | 1 |
|
- | ||||
| 7 | 3807F349-51 | Support, Bkgd End Rt | 1 |
|
- | ||||
| 8 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 9 | 7403P173-60 | Switch, Selector | 1 |
|
- | ||||
| 10 | 7403P183-60 | Switch, Inf. 250v | 1 |
|
- | ||||
| 11 | 7404P030-60 | Thermostat | 1 |
|
- | ||||
| 12 | 7726P032-60 | Trim, Bkgd End (rt) | 1 |
|
- | ||||
| 12 | 7726P031-60 | Trim, Bkgd End (lt) | 1 |
|
- | ||||
| 13 | 7720P089-60 | Trim, Glass Retainer | 1 |
|
- | ||||
| 13 | 7703P229-60 | Trim, Inlay Bkgd | 1 |
|
- |
