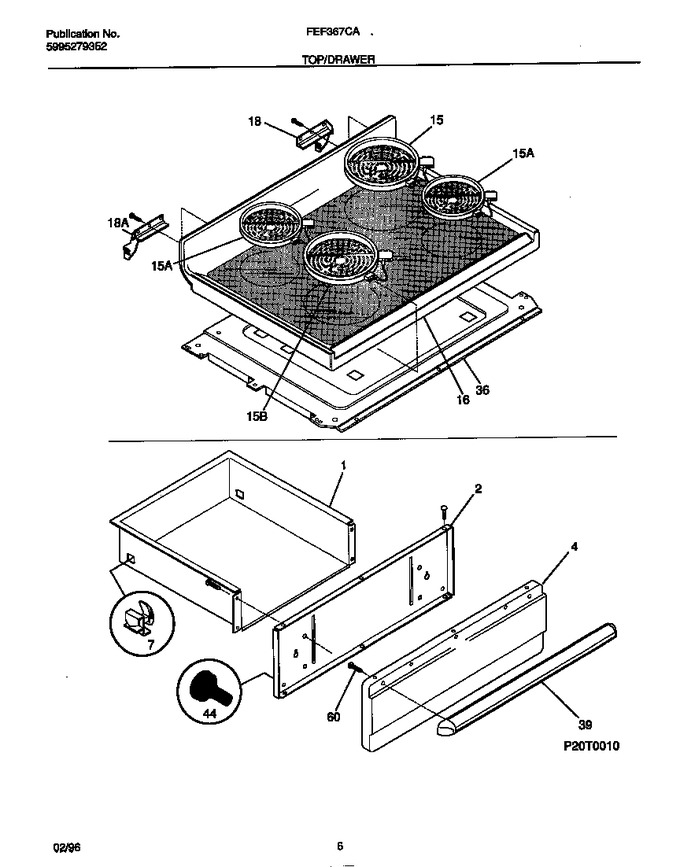

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056207		Panel-drawer, Black		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318198817		Element-surface, 1200 W, Small/6 Inch   (Replaces: 316010203)			Immediately	$ 192.78
15	318198834		Element-surface, 2100 W, Large/8 Inch   (Replaces: 316010204)				$ 205.36
15	316049701		Element-surface, Dual Coil, 8 Inch, 2100w/700w		Appelez-nous	-
16	316035509		Main Top, Black		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
39	316026100		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
*72447	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*72448	316001729		Harness-top Elements		Appelez-nous	-
*72449	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*72450	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*72451	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*72452	5309951550		Cleaner-cooktop		Appelez-nous	-
36A	316033610		Panel-element Mtg, Glass Top		Appelez-nous	-
36B	316023301		Clip-spring, Element Mtg, (4) (not Illustrated)		Appelez-nous	-
36C	316041001		Stud-index, Top Element (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
