SELECT A DIAGRAM
01 - Body

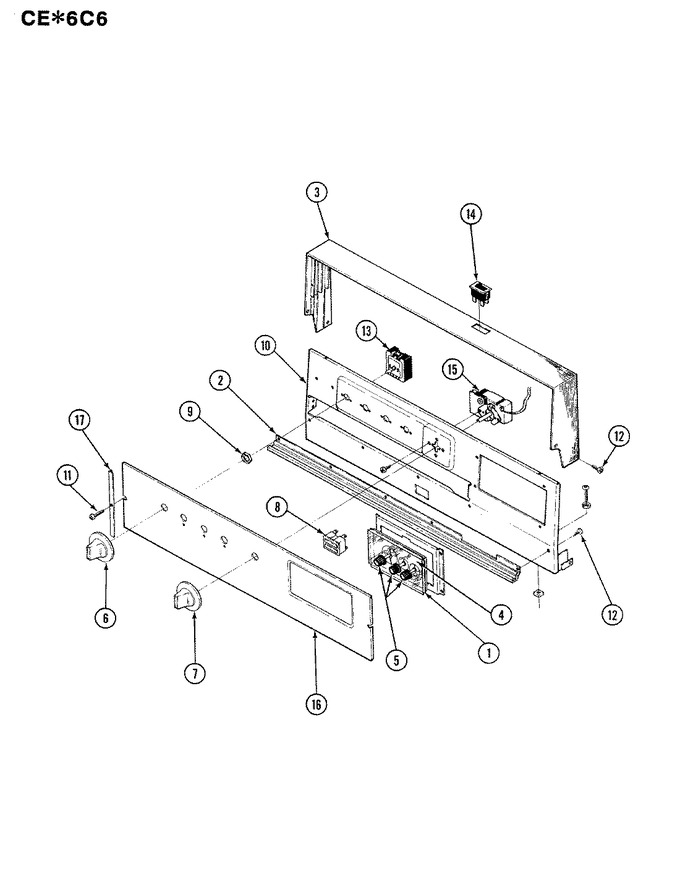

02 - Control Panel
03 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3802F014-80 | Brace | 1 |
|
- | ||||
| 1 | 4005F036-20 | Shield | 1 |
|
- | ||||
| 1 | 7601P096-60 | Clock | 1 |
|
- | ||||
| 2 | 7706P016-60 | Extrusion, Trim | 1 |
|
- | ||||
| 3 | 7706P034-60 | Extrusion, Top & Side | 1 |
|
- | ||||
| 4 | 7902P109-60 | Glass, Clock | 1 |
|
- | ||||
| 5 | 1359263 | Knob, Switch | 1 |
|
- | ||||
| 5 | 1437241 | Knob, Clock | 1 |
|
- | ||||
| 6 | 7737P009-60 | Knob, Infinite | 1 |
|
- | ||||
| 7 | 7735P015-60 | Knob, Thermostat | 1 |
|
- | ||||
| 8 | 7407P014-60 | Light, Signal | 1 |
|
- | ||||
| 9 | 1555246 | Nut | 1 |
|
- | ||||
| 10 | 2601W101-00 | Backguard Assy | 1 |
|
- | ||||
| 11 | 7101P022-60 | Screw, Special | 1 |
|
- | ||||
| 12 | 7101P008-60 | Screw | 1 |
|
- | ||||
| 12 | 7403P096-60 | Switch, Hi-limit | 1 |
|
- | ||||
| 13 | 7403P167-60 | Switch, Inf. Control | 1 |
|
- | ||||
| 14 | 7403P067-60 | Switch (Replaces: 7403P020-60) | 1 |
|
$ 91.35 | ||||
| 15 | 7404P015-60 | Thermostat | 1 |
|
- | ||||
| 16 | 7703P176-60 | Trim, Bkgd | 1 |
|
- | ||||
| 17 | 7720P107-60 | Trim, Glass Retainer | 1 |
|
- |
