SELECT A DIAGRAM

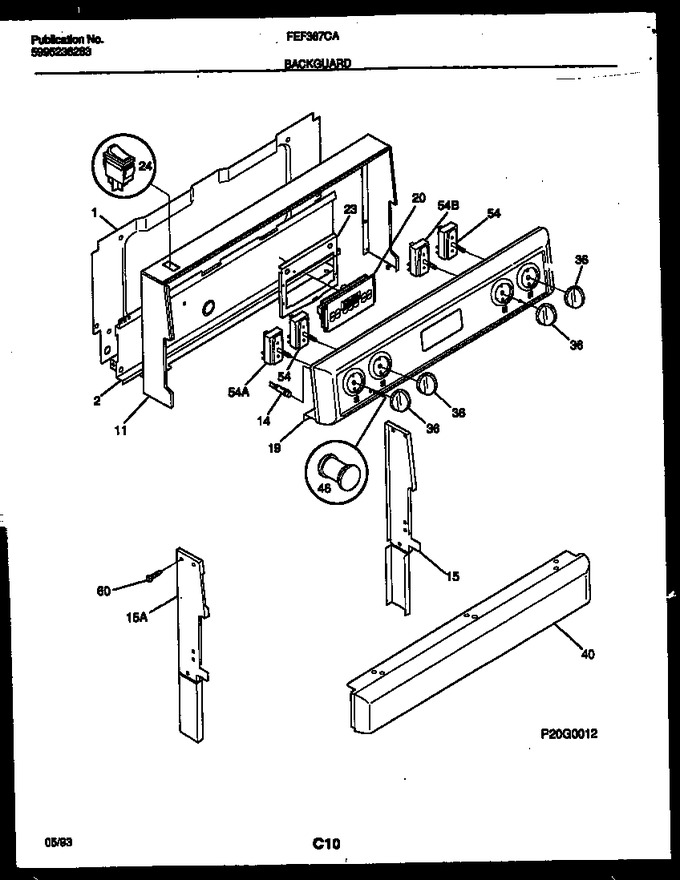

02 - Backguard


03 - Body Parts


04 - Cooktop And Drawer Parts


05 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316015701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316034304		Trim-wrapper, Almond		Appelez-nous	-
14	316022502		Light/lamp, Indicator, 250 V, (3)		Appelez-nous	-
15	316023102		Support-backguard, Rh		Appelez-nous	-
19	316024411		Panel-control, Metal		Appelez-nous	-
20	316027202		Clock/timer, Eoc, Membrane		Appelez-nous	-
23	316033201		Bracket-clock Mtg		Appelez-nous	-
24	316005604		Switch - Oven Light, Rocker, Almond		Appelez-nous	-
36	316025102		Knob-control, Almond		Appelez-nous	-
40	316025802		Panel-manifold, Almond		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
14A	316034800		Light/lamp, Ind, Hot Surface (non-illustrated)		Appelez-nous	-
14B	316035700		Lens-light/lamp, Indicator (non-illustrated)		Appelez-nous	-
15A	316023103		Support-backguard, Lh		Appelez-nous	-
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54B	316023700		Switch-dual Element		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
