SELECT A DIAGRAM

01 - Cover

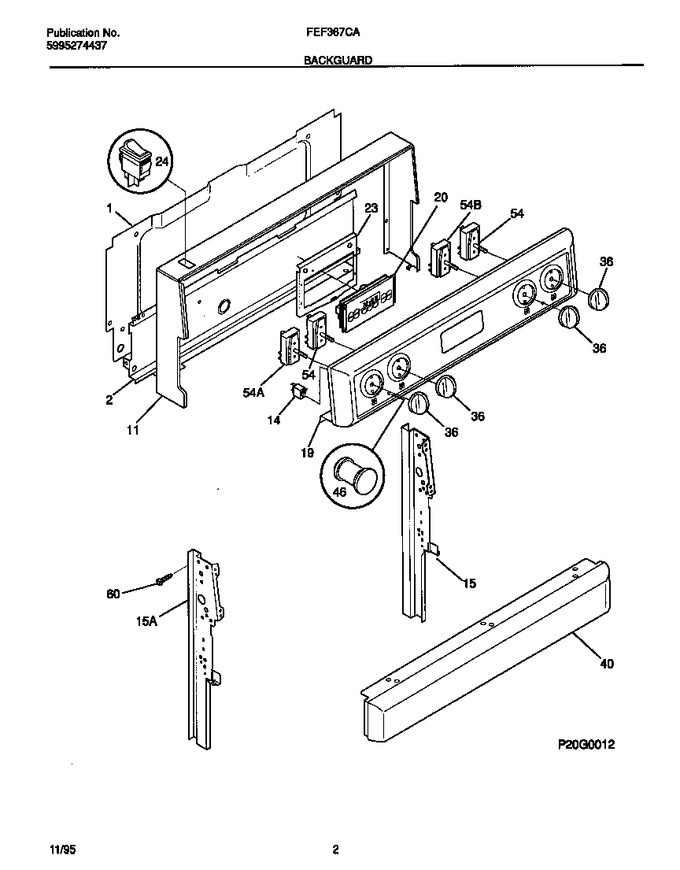

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316083701		Trim-wrapper, Almond, Top		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
19	316024427		Panel-control, Almond		Appelez-nous	-
20	316027402		Clock/timer, Electronic		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	316005608		Switch-rocker, Almond, Oven Light		Appelez-nous	-
36	316025102		Knob-control, Almond		Appelez-nous	-
40	316025809		Panel-manifold, Almond		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316023700		Switch-dual Element		Appelez-nous	-
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*97840	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*97841	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
14A	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
14B	316034800		Light/lamp, Ind, Hot Surface		Appelez-nous	-
46A	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
46B	316035700		Lens-light/lamp, Indicator (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
