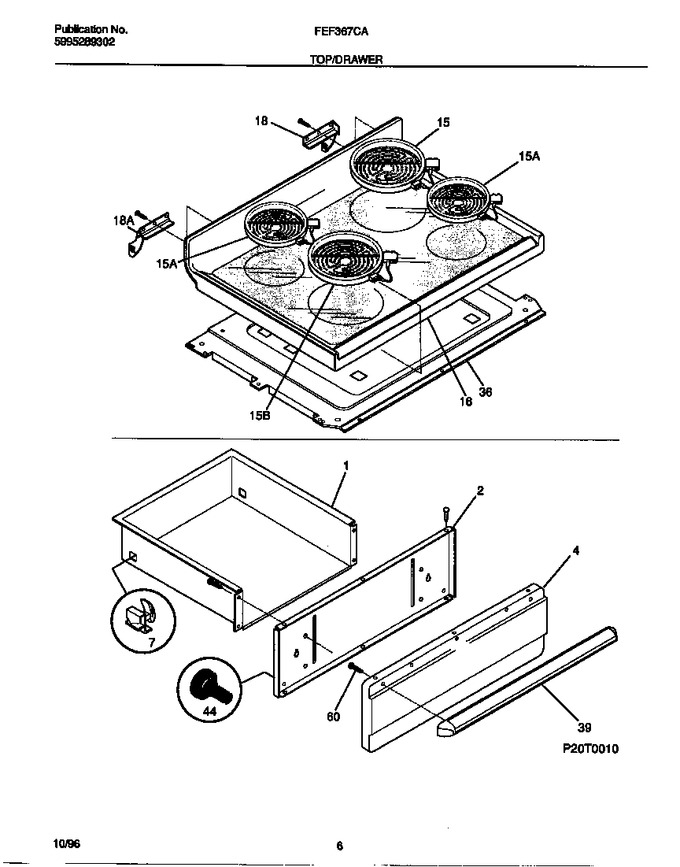

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318198817		Element-surface, 1200 W, Small/6 Inch   (Replaces: 316010203)			Immediately	$ 192.78
15	316049701		Element-surface, Dual Coil, 8 Inch, 2100w/700w		Appelez-nous	-
15	318198834		Element-surface, 2100 W, Large/8 Inch   (Replaces: 316010204)				$ 205.36
16	316035508		Main Top Assy, Glass/steel, Enamel, Almond		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
39	316026102		Handle-drawer, Almond		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	316089500		Screw-drawer Handle, 10-16 X .486, (2)				$ 13.46
*55728	316034800		Light/lamp, Ind, Hot Surface		Appelez-nous	-
*55729	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*55730	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*55731	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*55732	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*55733	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
*55734	5309951550		Cleaner-cooktop		Appelez-nous	-
*55735	316001729		Harness-top Elements		Appelez-nous	-
36A	316033610		Panel-element Mtg, Glass Top		Appelez-nous	-
36B	316023301		Clip-spring, Element Mtg, (4) (not Illustrated)		Appelez-nous	-
36C	316041001		Stud-index, Top Element (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
