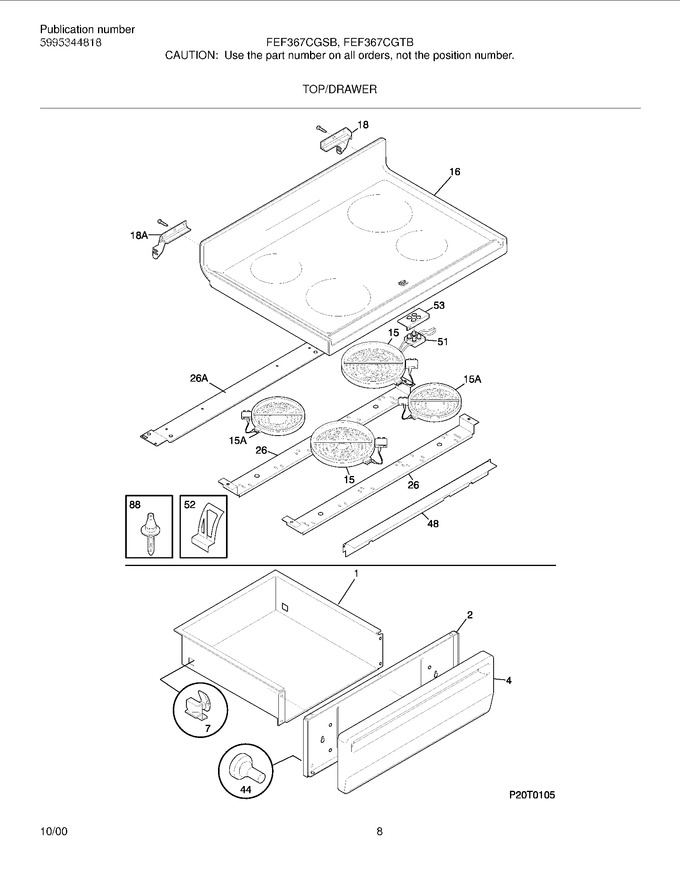

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	5303288582		Shield-drawer,liner ,galv Steel ,front Panel		Appelez-nous	-
4	316084405		Panel-drawer Front,white		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
10	5303280308		Screw-handle Mtg, Water Head, 10-24(t) X 2				$ 16.96
15	318198834		Element-surface,radiant , Large/8 Inch ,2100 W   (Replaces: 316010206)				$ 205.36
16	316098105		Main Top, White		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099100		Channel-support,element ,galv Steel ,(2)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316100200		Shield-wire, Main Top		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
53	316099300		Bracket-indicator Light, Hot Surface		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
	316045000		Clip-wiring Harness,retainer ,green ,main Top		Appelez-nous	-
	316089600		Spacer-drawer, (2)		Appelez-nous	-
	316112101		Cleaner,cooktop		Appelez-nous	-
	5303280311		Screw-10 32 X 5/16 Waf Hd Sdr, Waf Hd Sdr, 10 32 X 5/16				$ 6.62
	5308014215		Screw`6-20 X 0.312				$ 2.28
15A	318198817		Element-surface,radiant , Small/6 Inch ,1200 W   (Replaces: 316010205)			Immediately	$ 192.78
18A	5303273063		Hinge-main Top (lh)				$ 48.41
26A	316099200		Bracket,chassis Support ,rear		Appelez-nous	-
