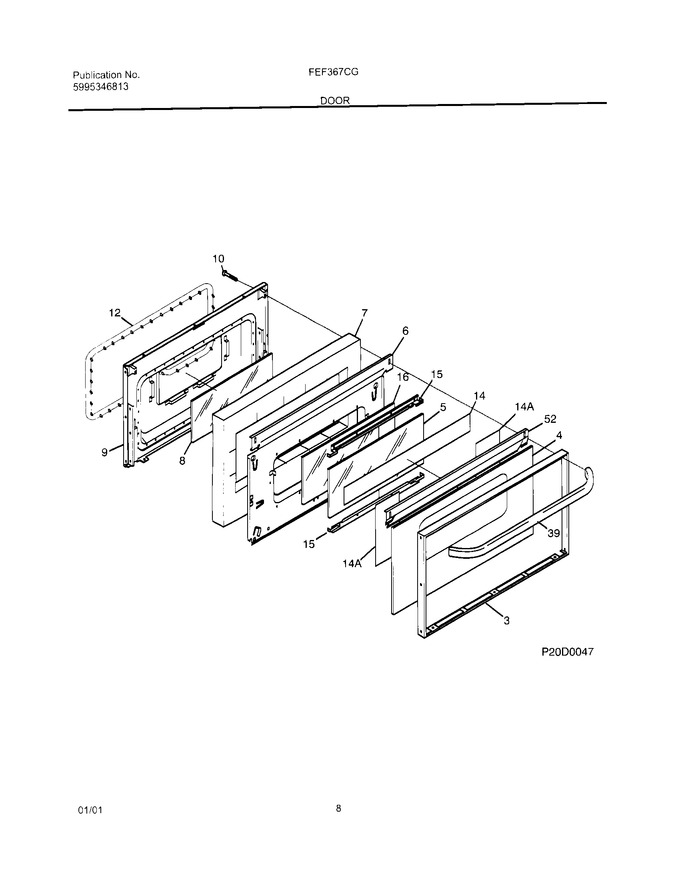

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067804		Trim-oven Door, White		Appelez-nous	-
4	316089005		Glass-oven Door, White, Outer		Appelez-nous	-
5	316088700		Glass,oven Door ,airwash				$ 70.17
6	316088401		Shield-wool		Appelez-nous	-
7	316076403		Insulation-door		Appelez-nous	-
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg,wafer Hd Sq Dr ,10-24t X 2.00				$ 16.96
12	5303131601		Seal-oven Door				$ 374.63
14	3131360		Reflector, Aluminum Foil (2)		Appelez-nous	-
14	3131361		Reflector, Aluminum Foil		Appelez-nous	-
15	316081403		Bracket,glass Mtg		Appelez-nous	-
16	316085701		Glass,oven Door ,heat Barrier				$ 131.41
39	5304530039		Handle-door, White, Oven   (Replaces: 316091115)			Immediately	$ 167.43
52	316081301		Shield-oven Door, White, Top				$ 85.94
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
NI	316065306		Plate Warning/caution		Appelez-nous	-
NI	316132100		Spacer,sponge Pad		Appelez-nous	-
