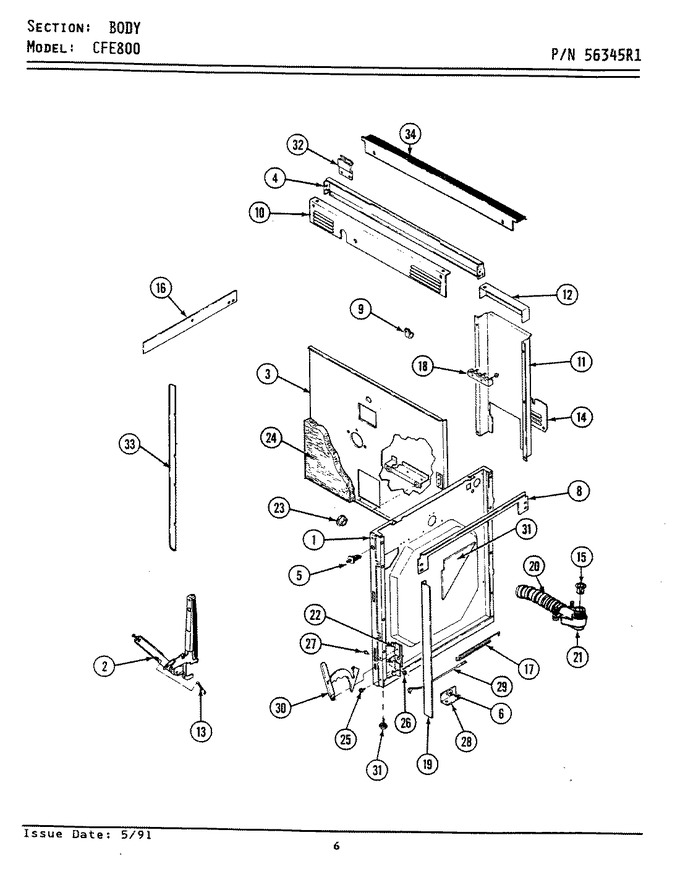

01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4009W030-80 | Lining Assy, Inner Side | 00 |
|
- | ||||
| 1 | 4009W039-80 | Lining Assy, Inner Side R.h. | 00 |
|
- | ||||
| 1 | 4009W065-80 | Lining,inner Side(r) | 02 |
|
- | ||||
| 1 | 4009W066-80 | Lining,inner Side(l) | 02 |
|
- | ||||
| 2 | 7106P022-60 | Hinge, Oven Door | 02 |
|
- | ||||
| 2 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 02 |
|
$ 4.29 | ||||
| 3 | 4002F103-80 | Back, Main | 00 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 4 | 3802F071-80 | Brace, Main Top | 00 |
|
- | ||||
| 4 | WP4159193 | Screw (Replaces: 7118P004-60) | 00 |
|
$ 4.29 | ||||
| 5 | 7403P105-60 | Switch, Push (oven Lamp) | 00 |
|
- | ||||
| 6 | 8014P007-60 | Bearing, Roller | 00 |
|
- | ||||
| 8 | 3807F194-80 | Support, Panel Unit | 00 |
|
- | ||||
| 9 | 7111P002-60 | Clamp, Wire 3/4 | 00 |
|
- | ||||
| 10 | 3604F097-80 | Shield, Housing | 00 |
|
- | ||||
| 11 | 4011F051-51 | Housing, Wire | 00 |
|
- | ||||
| 12 | 4005F082-80 | Cover, Housing | 00 |
|
- | ||||
| 13 | 04000040 | Spring, Mini-stanley | 00 |
|
- | ||||
| 14 | 4005F302-51 | Cover Access | 00 |
|
- | ||||
| 15 | 7109P002-60 | Washer | 00 |
|
- | ||||
| 15 | 8018P002-60 | Sleeve, Tube | 00 |
|
- | ||||
| 16 | 3601F106-51 | Baffle, Side Panel | 00 |
|
- | ||||
| 17 | 7803P057-60 | Spring | 00 |
|
- | ||||
| 18 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 00 |
|
Immediately | $ 31.65 | |||
| 19 | 2618F072-80 | Panel, Side Left | 00 |
|
- | ||||
| 19 | 2618F071-80 | Panel, Side Right | 00 |
|
- | ||||
| 20 | 3414F066-51 | Tubing, Conduit | 00 |
|
- | ||||
| 21 | 7417P005-60 | Connector, Conduit | 00 |
|
- | ||||
| 22 | 3418A030-60 | Hinge (rt) | 00 |
|
- | ||||
| 22 | 3418A029-60 | Hinge (lt) | 00 |
|
- | ||||
| 22 | 8016P008-60 | Glide, Oven Door Hinge | 00 |
|
- | ||||
| 23 | 8008P019-60 | Grommet | 00 |
|
- | ||||
| 24 | 7002P116-60 | Insulation, Rear | 00 |
|
- | ||||
| 25 | WP4159193 | Screw (Replaces: 7101P112-60) | 00 |
|
$ 4.29 | ||||
| 26 | 7112P019-60 | Clip, Hinge Pin | 00 |
|
- | ||||
| 27 | 7113P002-60 | Pin, Hinge | 00 |
|
$ 9.05 | ||||
| 28 | 12400018 | Bracket, Cable Roller | 00 |
|
- | ||||
| 29 | 8019P001-60 | Strap Cable | 00 |
|
- | ||||
| 30 | 3420A034-34 | Stop Assy., Hinge | 00 |
|
- | ||||
| 31 | 4005F163-51 | Cover, Switch | 00 |
|
- | ||||
| 32 | 7706P170-60 | Hinge, Main Top | 00 |
|
- | ||||
| 33 | 7101P154-60 | Screw, Ph Flat Hd | 00 |
|
- | ||||
| 33 | 7706P042-60 | Trim, Cabinet Front | 00 |
|
- | ||||
| 34 | 7706P009-60 | Filler, Strip | 00 |
|
- | ||||
| NI | 3605F163-80 | Plate Conduit | 00 |
|
- |
