SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

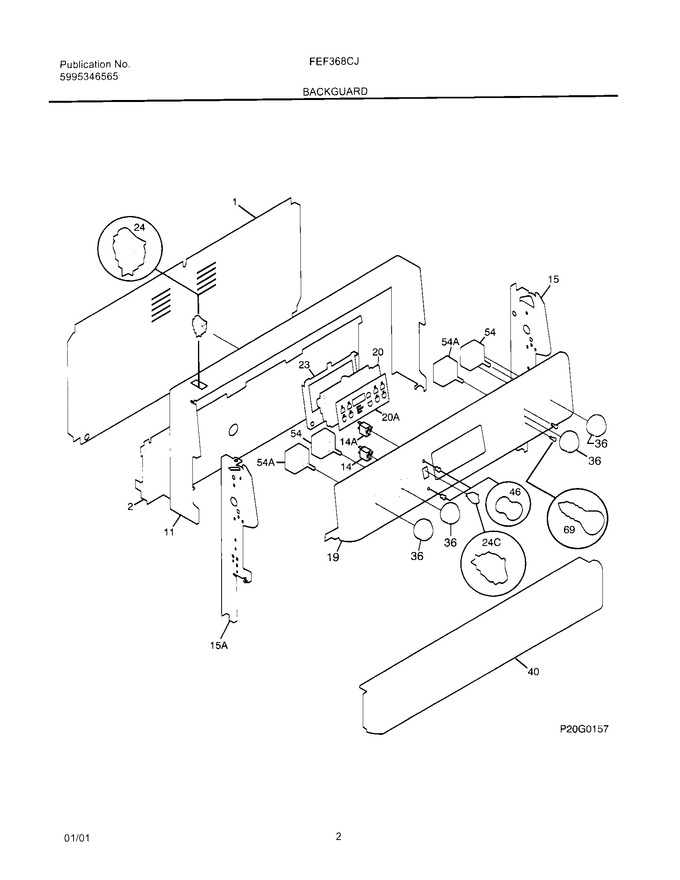

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081600		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316083719		Trim-wrapper,textured ,black		Appelez-nous	-
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
14	316022500		Light/lamp,warmer,indicator ,drawer/zone,125 V			Immediately	$ 53.57
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316100588		Panel-control,black ,19		Appelez-nous	-
20	316101545		Overlay-clock,gray				$ 72.98
20	316131605		Clock/timer,electronic		Appelez-nous	-
23	316100301		Bracket-timer		Appelez-nous	-
24	316114003		Switch-speed Bake,grey		Appelez-nous	-
24	5304527841		Switch-oven Light,rocker ,black   (Replaces: 316118100)			Immediately	$ 11.38
36	316109606		Knob-control,black ,36				$ 36.91
40	316025800		Panel-manifold,black		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
69	5303292005		Screw,8-32 X 5/32 ,switch/handle		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
