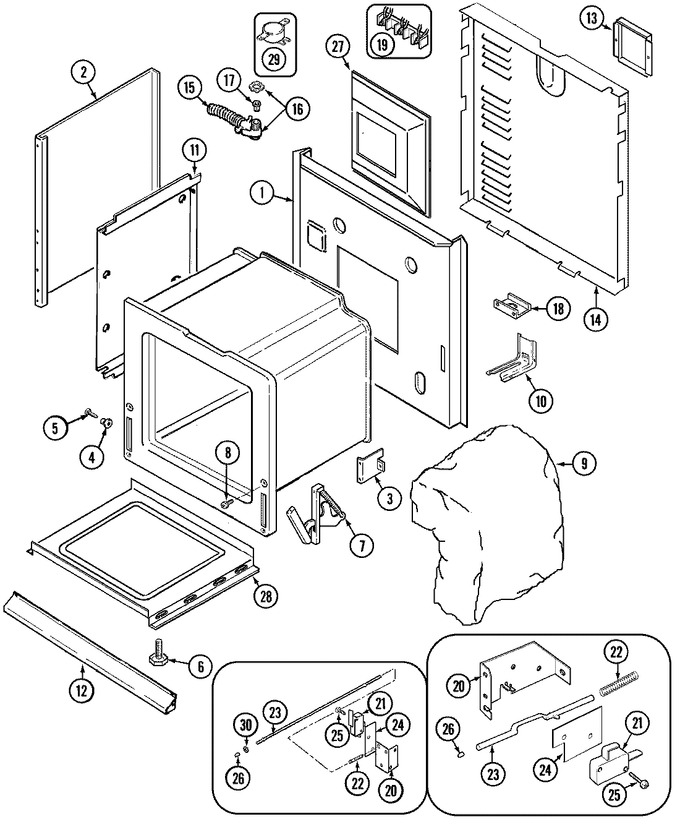

01 - Body
02 - Door/drawer
03 - Internal Controls
04 - Oven
05 - Top Assembly (blk)
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001579 | Back, Main | 10 |
|
- | ||||
| 2 | 2618F108-70 | Panel, Side (rt-blk) | 10 |
|
- | ||||
| 2 | 7003P067-60 | Insulator, Damper Sound | 10 |
|
- | ||||
| 2 | 2618F109-70 | Panel, Side (lt-blk) | 10 |
|
- | ||||
| 3 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 4 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 5 | W11772394 | Screw (Replaces: 7101P334-60) | 10 |
|
Immediately | $ 10.94 | |||
| 6 | 7101P316-60 | Leg, Leveling | 10 |
|
- | ||||
| 7 | 7106P056-60 | Hinge | 10 |
|
- | ||||
| 8 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 9 | 4804F038-60 | Insulation, Back | 10 |
|
- | ||||
| 9 | 4804F036-60 | Insulation, Wrap | 10 |
|
- | ||||
| 10 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 10 |
|
$ 26.33 | ||||
| 10 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 10 |
|
Immediately | $ 4.69 | |||
| 11 | 3804F107-51 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 12 | 3604W155-70 | Shield, Lower Vent (blk) | 10 |
|
- | ||||
| 13 | 4005F413-51 | Cover, Access | 10 |
|
- | ||||
| 14 | 4005F411-51 | Cover, Wire | 10 |
|
- | ||||
| 15 | 3414F066-51 | Tubing, Conduit | 10 |
|
- | ||||
| 15 | 5140A026-60 | Wires Conduit | 10 |
|
- | ||||
| 16 | 7417P005-60 | Connector, Conduit | 10 |
|
- | ||||
| 17 | 8008P017-60 | Grommet | 10 |
|
- | ||||
| 18 | 3605F174-51 | Plate, Conduit Tubing | 10 |
|
- | ||||
| 19 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 10 |
|
Immediately | $ 31.65 | |||
| 20 | 3801F354-51 | Bracket, Light Switch | 10 |
|
- | ||||
| 20 | 74001632 | Bracket, Switch Actuator | 15 |
|
- | ||||
| 21 | 4874F001-60 | Switch, Door Light | 10 |
|
- | ||||
| 21 | 74001628 | Switch, Door Light | 15 |
|
- | ||||
| 22 | 7803P067-60 | Spring | 10 |
|
- | ||||
| 22 | 74001629 | Spring, Door Switch | 15 |
|
$ 15.03 | ||||
| 23 | 74001630 | Rod, Door Light Switch | 15 |
|
- | ||||
| 23 | 7809P022-60 | Rod, Light Switch | 10 |
|
- | ||||
| 24 | 74001626 | Insulator, Door Switch | 15 |
|
- | ||||
| 24 | 7003P062-60 | Insulator, Switch | 10 |
|
- | ||||
| 25 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 26 | 74001631 | Bumper, Rod | 15 |
|
$ 5.22 | ||||
| 26 | 8003P012-60 | Bumper | 10 |
|
- | ||||
| 27 | 74001325 | Cover, Wire (9`` X 9``) | 10 |
|
- | ||||
| 28 | 4011F176-51 | Bottom, Main | 10 |
|
- | ||||
| 29 | 7403P307-60 | Thermostat, Snap Acting | 10 |
|
- | ||||
| 30 | 7109P020-60 | Washer | 10 |
|
- |
