SELECT A DIAGRAM

01 - Blower Plenum


02 - Burner Assembly


03 - Control Assembly

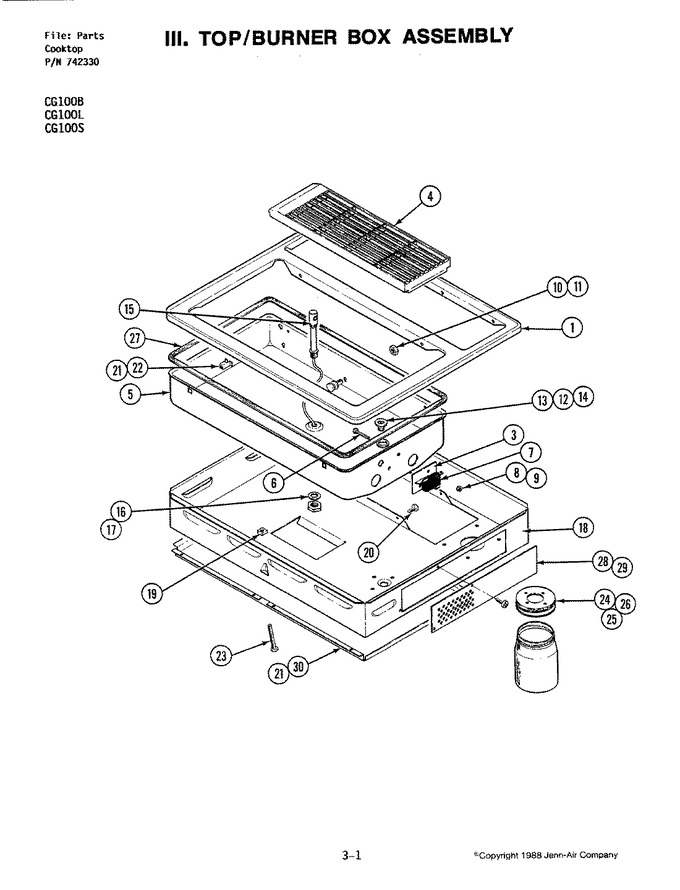

04 - Top/burner Box Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	712520		Top Assy, Black Kit	2	Appelez-nous	-
1	712471		Top Assy, Black (kit)	1	Appelez-nous	-
3	Y704534		Insulator, Switch	1	Appelez-nous	-
4	Y704570		Grill, Air (blk)	1	Appelez-nous	-
5	704528		Pan, Grill	1	Appelez-nous	-
6	DE81-04441A		Screw   (Replaces: 702380)	1			$ 329.62
7	7403P620-60		Switch, Micro   (Replaces: Y704533)	1			$ 141.22
8	Y704522		Nut	1	Appelez-nous	-
9	715617		Washer (teflon)	1	Appelez-nous	-
10	Y052721		Nut   (Replaces: Y704553)	1			$ 21.38
11	704536		Pin, Locator	1	Appelez-nous	-
12	702747		Washer, Teflon	1	Appelez-nous	-
13	702748		Nut, Drain Tube	1	Appelez-nous	-
14	704546		Tube, Drain	1	Appelez-nous	-
15	WP71002179		Ignitor, Spark   (Replaces: 704535)	1			$ 181.49
16	704568		Lockwasher	1			$ 13.02
17	Y703856		Nut, Jam	1			$ 5.53
18	712474		Box, Burner Assembly	1	Appelez-nous	-
19	M0282009		Nut,square   (Replaces: Y707124)	1			$ 12.06
20	WPW10253196		Screw   (Replaces: Y707113)	1			$ 3.76
21	WP90767		Screw   (Replaces: Y700502)	1		Immediately	$ 7.04
22	Y700503		Clip, Retainer	1	Appelez-nous	-
23	Y707121		Screw	1	Appelez-nous	-
24	Y707870		Lid, Jar	1	Appelez-nous	-
25	WPY707869		Jar, Drain   (Replaces: Y707869)	1			$ 61.43
26	WP210720		Rivet, Jar Lid   (Replaces: Y707128)	1			$ 12.14
27	704526		Seal, Foam	1	Appelez-nous	-
28	Y704385		Cover, Front	1	Appelez-nous	-
29	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
30	3601F261-51		Baffle, Bottom (lt)   (Replaces: 704527)	1			$ 216.98
NI	Y704544		Grate, Grill	1	Appelez-nous	-
