View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body/oven
02 - Door/drawer
03 - Gas Controls (cg1100prx-k)

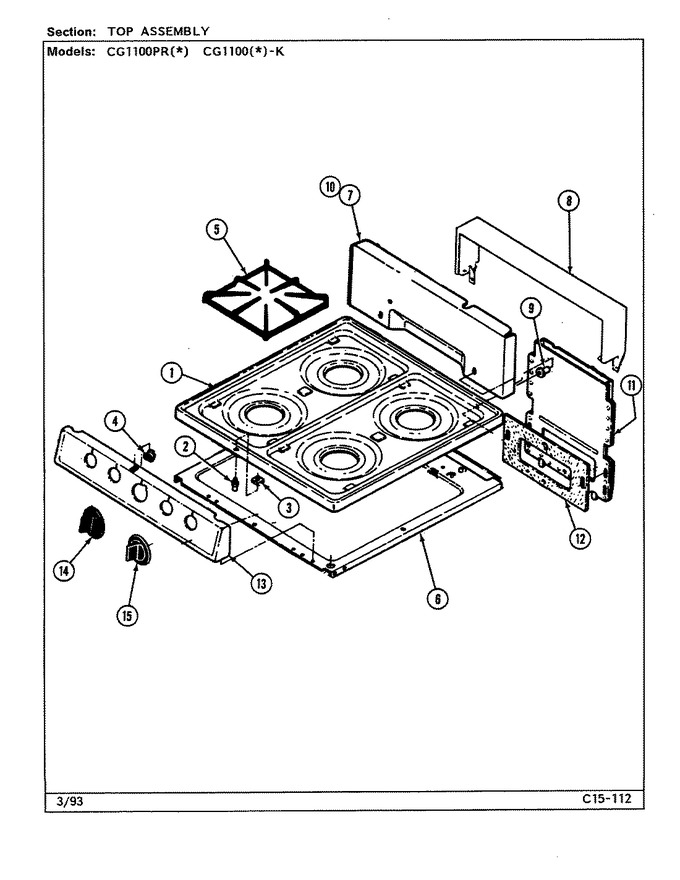

04 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001F050-84 | Top, Main (alm) | 01 |
|
- | ||||
| 2 | 8024P003-60 | Strike, Main Top | 01 |
|
- | ||||
| 3 | WP486255 | Nut, Strike (Replaces: 7103P105-60) | 01 |
|
$ 5.54 | ||||
| 4 | 8002P022-60 | Spring, Catch - Female | 01 |
|
- | ||||
| 5 | 2003W023-00 | Grate (blk) | 01 |
|
- | ||||
| 6 | 4011F164-80 | Box, Burner | 01 |
|
- | ||||
| 7 | 2601F210-84 | Panel, Control (alm) | 01 |
|
- | ||||
| 8 | 3603F017-50 | Frame, Backguard | 01 |
|
- | ||||
| 8 | M0282009 | Nut (Replaces: 7103P064-60) | 01 |
|
$ 12.06 | ||||
| 8 | WP3400074 | Screw (Replaces: 7101P068-60) | 01 |
|
$ 6.47 | ||||
| 9 | 7103P089-60 | Nut, Projection Weld | 01 |
|
- | ||||
| 9 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 6.77 | ||||
| 10 | 7719P060-60 | Nameplate | 01 |
|
- | ||||
| 11 | 4006W062-45 | Box Flue Vent | 01 |
|
- | ||||
| 12 | 7201P038-60 | Gasket, Vent Deflect | 01 |
|
- | ||||
| 13 | 7103P100-60 | Nut, Tinnerman | 01 |
|
- | ||||
| 13 | 2616F069-74 | Panel, Manifold (alm) | 01 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 14 | 7731P040-60 | Knob, Thermostat | 01 |
|
- | ||||
| 15 | 7733P015-60 | Knob, Valve | 01 |
|
- | ||||
| NI | 8112P114-60 | Manual, Use & Care | 01 |
|
- |
