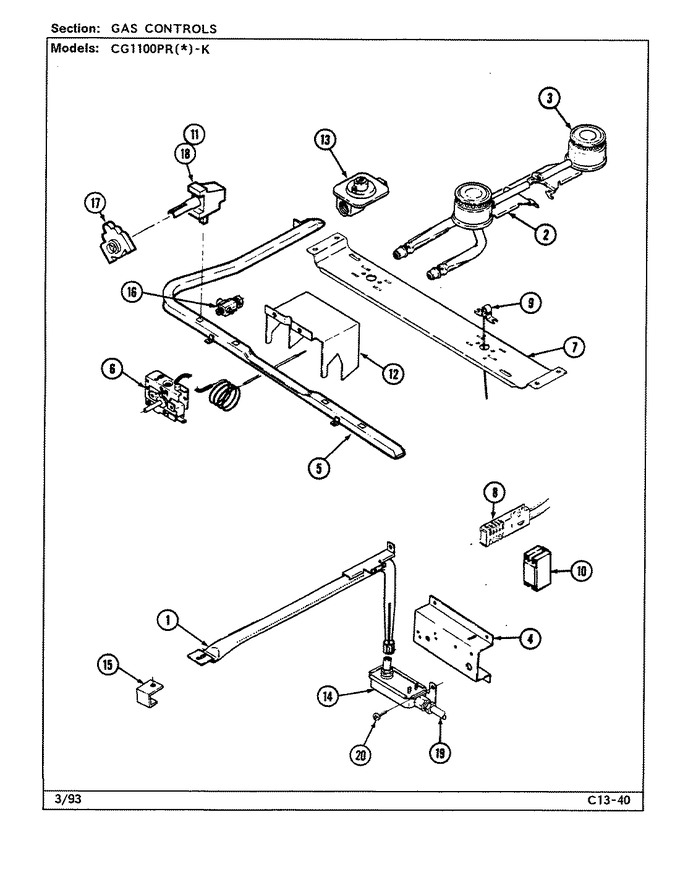

03 - Gas Controls (cg1100prx-k)
04 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3403D042-45 | Oven Burner Assy. | 01 |
|
- | ||||
| 2 | 7505P173-60 | Burner, Top (frt) | 01 |
|
- | ||||
| 3 | 7505P172-60 | Burner, Top (rear) | 01 |
|
- | ||||
| 4 | 3807F369-45 | Support, Oven Valve | 01 |
|
- | ||||
| 5 | 7513P143-60 | Pipe, Manifold | 01 |
|
- | ||||
| 6 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 01 |
|
$ 6.70 | ||||
| 6 | 7404P062-60 | Thermostat, Oven | 01 |
|
- | ||||
| 7 | 3807F354-80 | Support, Top Burner | 01 |
|
- | ||||
| 8 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 01 |
|
Immediately | $ 60.44 | |||
| 9 | 7432P028-60 | Igniter, Top Burner (rt) | 01 |
|
- | ||||
| 9 | 7432P029-60 | Igniter, Top Burner (lt) | 01 |
|
- | ||||
| 10 | 7431P006-60 | Module, Spark | 01 |
|
- | ||||
| 11 | 7101P044-60 | Screw, Valve | 01 |
|
- | ||||
| 12 | 4005F320-51 | Cover, Thermostat | 01 |
|
- | ||||
| 13 | 7510P002-60 | Regulator, Pressure | 01 |
|
- | ||||
| 14 | 3807F370-45 | Support, Oven Valve | 01 |
|
- | ||||
| 14 | 7501P106-60 | Valve, Oven | 01 |
|
- | ||||
| 14 | 7501P136-60 | Valve, Oven (natural) | 02 |
|
- | ||||
| 15 | 3807F336-51 | Support, Burner | 01 |
|
- | ||||
| 16 | 7502P002-60 | Valve, Shut Off | 01 |
|
- | ||||
| 17 | 7403P318-60 | Switch | 01 |
|
- | ||||
| 18 | 7502P244-60 | Valve, Top Burner | 01 |
|
- | ||||
| 19 | 3414F085-44 | Tubing, Oven (3/8``) | 01 |
|
- | ||||
| 20 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| NI | 5125A241-60 | Wire, Loose | 01 |
|
- | ||||
| NI | 5185D189-60 | Harness, Lower | 01 |
|
- |
