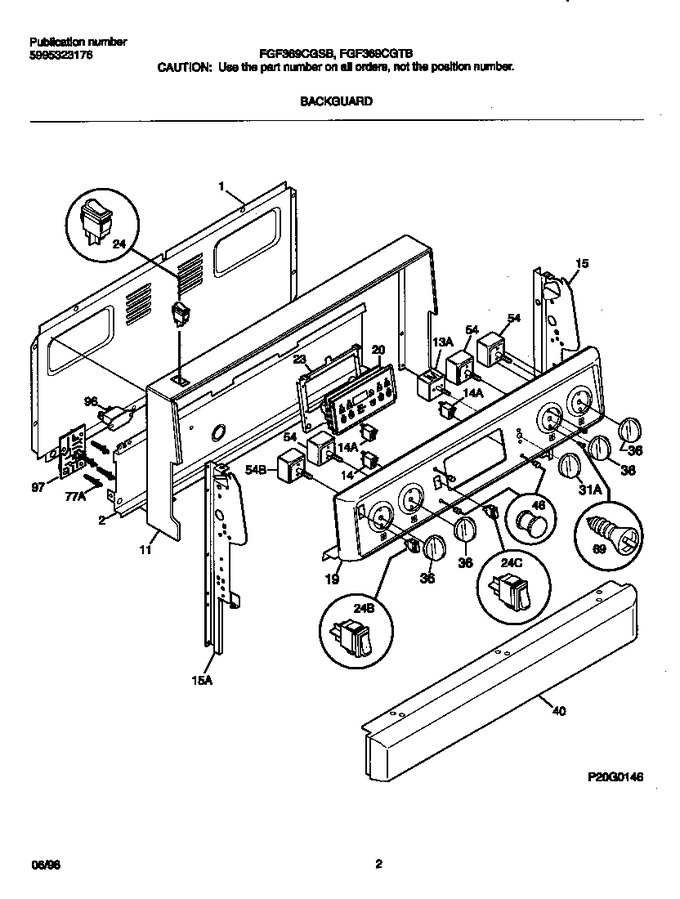

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316083721		Trim-wrapper,, Textured , White		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
14	316022500		Light/lamp,warmer,indicator ,drawer/zone,125 V			Immediately	$ 53.57
14	316022504		Light-indicator,250v		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100541		Panel-bkgd, White		Appelez-nous	-
20	316101004		Clock/timer		Appelez-nous	-
23	316100300		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light ,white   (Replaces: 316118101)			Immediately	$ 16.13
24	316083100		Switch-rocker, Dual Element, White   (Replaces: 316086901)				$ 89.31
24	316259800		Switch-speed Bake,white   (Replaces: 316114000)				$ 36.21
31	316095601		Knob-warmer, White				$ 23.78
36	316025106		Knob-control, Infinite Sw, White				$ 57.64
40	316025808		Panel-manifold,white		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5304528972		Switch, Infinite, Dual Element   (Replaces: 316049800)				$ 47.78
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
77	316114100		Spacer				$ 60.96
80	318111400		Relay		Appelez-nous	-
96	316113700		Relay		Appelez-nous	-
*65920	5304464438		Capacitor-run,180-200 Vac ,15 Microfarad   (Replaces: 216236200)			Immediately	$ 35.38
*65921	316001759		Harness-surface Elements		Appelez-nous	-
*65922	316002669		Diagram-wiring		Appelez-nous	-
*65923	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*65924	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*65925	316071902		Gasket-edge		Appelez-nous	-
*65926	316085600		Insulator-shield Thermostt		Appelez-nous	-
*65927	316112500		Template, Anti-tip Bracket				$ 3.55
*65928	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
*65929	316101502		Overlay-clock				$ 108.15
