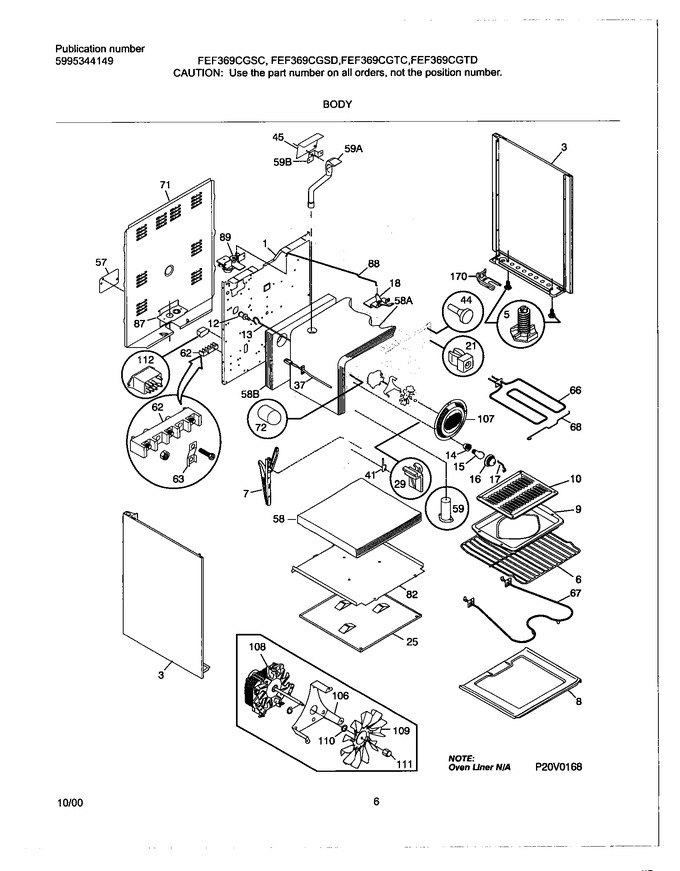

05 - Body
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 82 | 5303289913 | Shield,insulation |
|
- | |||||
| 87 | 316081200 | Bracket,cable Mtg |
|
- | |||||
| 88 | 316026400 | Rod-latch, Auto |
|
$ 21.79 | |||||
| 106 | 316026600 | Bracket,motor Mtg |
|
- | |||||
| 107 | 316026701 | Cover,fan |
|
$ 408.89 | |||||
| 108 | 316021111 | Screw, 8-18 X 1.5 (not Illustrated) |
|
- | |||||
| 109 | 316090600 | Fan Blade |
|
$ 54.97 | |||||
| 110 | 316090700 | Washer, Fan Motor |
|
- | |||||
| 111 | 316090800 | Nut-fan Retainer |
|
$ 11.76 | |||||
| 112 | 316082700 | Relay, Oven Door Lock |
|
$ 252.16 | |||||
| 170 | 316112005 | Bracket,anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| 170 | 316116000 | Screw`concrete Tpg `1.75 Inch ,anti-tip Brkt |
|
$ 12.89 | |||||
| 170 | 316112005 | Kit-anti-tip Bracket (complete W/template & Screw) (Replaces: 5303935180) |
|
Immediately | $ 18.91 | ||||
| 170 | 316112500 | Template, Anti-tip Bracket |
|
$ 3.55 | |||||
| F108 | 316090500 | Motor-fan |
|
$ 285.23 | |||||
| F89 | 316028107 | Motor-latch/lock |
|
- |
