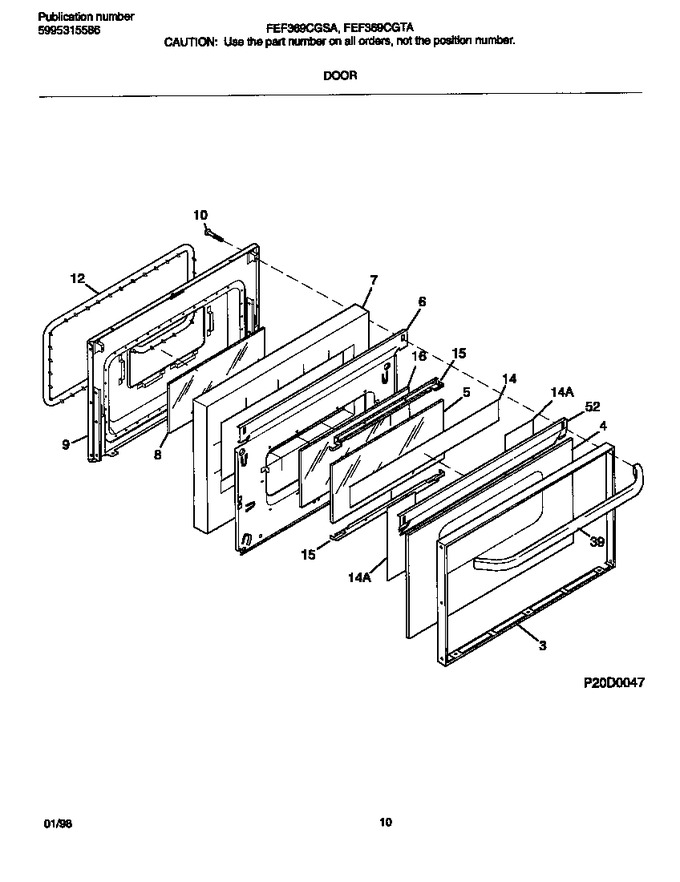

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067803		Trim-oven Door, Almond		Appelez-nous	-
4	316089004		Glass-oven Door, Almond, Outer		Appelez-nous	-
5	316088700		Glass,oven Door ,airwash				$ 70.17
6	316088401		Shield-wool		Appelez-nous	-
7	316076403		Insulation-door		Appelez-nous	-
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
12	5303131601		Seal-oven Door				$ 374.63
14	3131361		Reflector, Aluminum Foil		Appelez-nous	-
14	3131360		Reflector, Aluminum Foil (2)		Appelez-nous	-
15	316081403		Bracket,glass Mtg		Appelez-nous	-
16	316085701		Glass,oven Door ,heat Barrier				$ 131.41
39	316091116		Handle-door, Almond, Oven		Appelez-nous	-
52	316081302		Shield-oven Door, Almond, Top		Appelez-nous	-
*62183	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*62184	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*62185	316065301		Plate Warning/caution		Appelez-nous	-
*62186	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*62187	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*62188	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*62189	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34
