New Model Search:

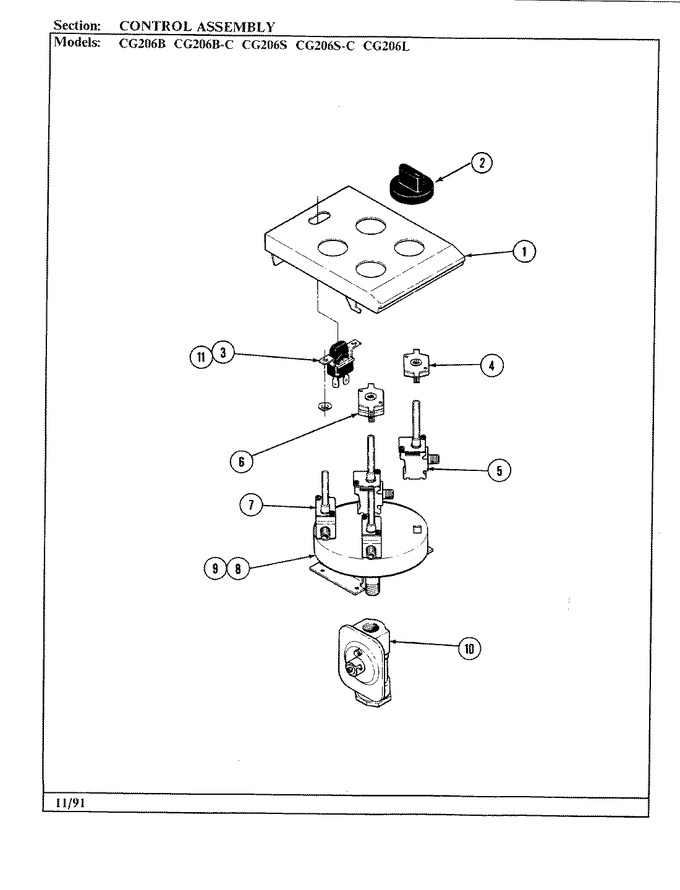

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704503 | Escutcheon | 1 |
|
- | ||||
| 2 | WP71001641 | Knob, Switch (blk) (Replaces: 705437) | 5 |
|
Immediately | $ 15.68 | |||
| 2 | WP71001641 | Knob, Switch (Replaces: Y705137) | 1 |
|
Immediately | $ 15.68 | |||
| 3 | Y704573 | Switch, Fan (blk) | 1 |
|
- | ||||
| 4 | WPY704512 | Switch, Valve (rt) (Replaces: Y704512) | 1 |
|
$ 98.02 | ||||
| 5 | 704504 | Valve (rt) | 1 |
|
- | ||||
| 5 | Y704893 | Valve (rt) | 5 |
|
- | ||||
| 6 | WPY704513 | Switch, Valve (lt) (Replaces: Y704513) | 1 |
|
$ 98.42 | ||||
| 7 | WPY04100188 | Valve, Gas (lt) (Replaces: Y04100188) | 2 |
|
$ 222.85 | ||||
| 7 | Y704505 | Valve (lt) | 1 |
|
- | ||||
| 8 | Y712273 | Manifold | 1 |
|
- | ||||
| 9 | 704556 | Harness, Wire | 1 |
|
$ 26.15 | ||||
| 10 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 1 |
|
Immediately | $ 215.01 | |||
| 11 | 7103P166-60 | Palnut (Replaces: 715500) | 1 |
|
$ 15.91 | ||||
| 11 | Y705023 | Palnut | 1 |
|
- |
