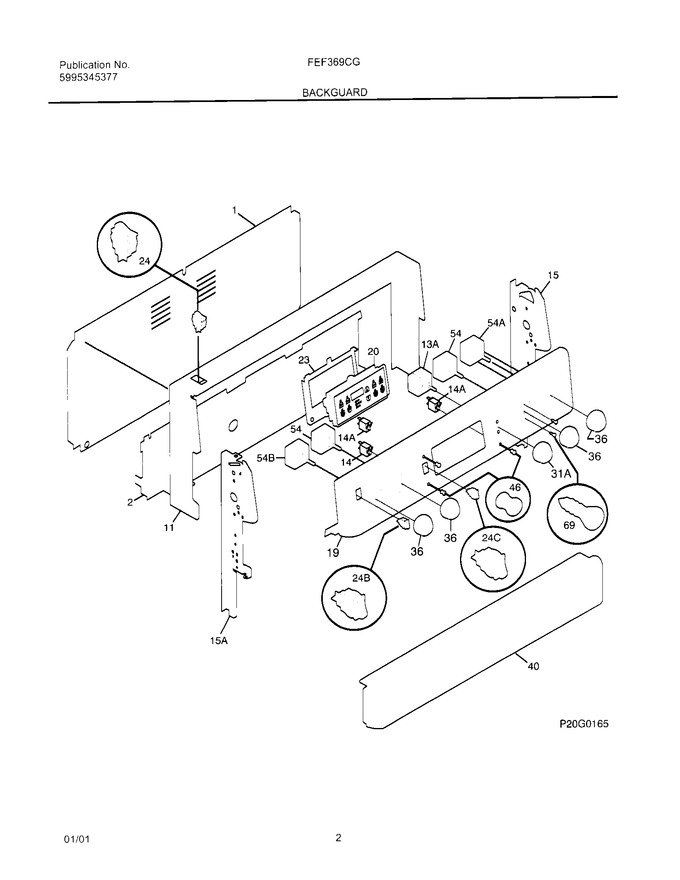

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081600		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316083720		Trim-wrapper Ele W/hole,almond		Appelez-nous	-
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
14	316022500		Light/lamp,warmer,indicator ,drawer/zone,125 V			Immediately	$ 53.57
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316100542		Panel-bkgd, Almond		Appelez-nous	-
20	316101504		Overlay-clock,almond				$ 8.45
20	316131605		Clock/timer,electronic		Appelez-nous	-
23	316100301		Bracket-timer		Appelez-nous	-
24	316086902		Switch-rocker, Dual Element, Almond		Appelez-nous	-
24	316118102		Switch-oven Light,rocker ,almond		Appelez-nous	-
24	316114001		Switch-speed Bake, Almond		Appelez-nous	-
31	316095602		Knob-warmer, Almond		Appelez-nous	-
36	316025107		Knob-control, Infinite Sw, Almond, (4)		Appelez-nous	-
40	316025809		Panel-manifold, Almond		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5304528972		Switch, Infinite, Dual Element   (Replaces: 316049800)				$ 47.78
69	5303292005		Screw,8-32 X 5/32 ,switch/handle		Appelez-nous	-
NI	316085600		Insulator		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,semi Gimlet ,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001759		Wiring Harness,surface Element		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
