01 - Body
02 - Door/drawer
03 - Gas Controls

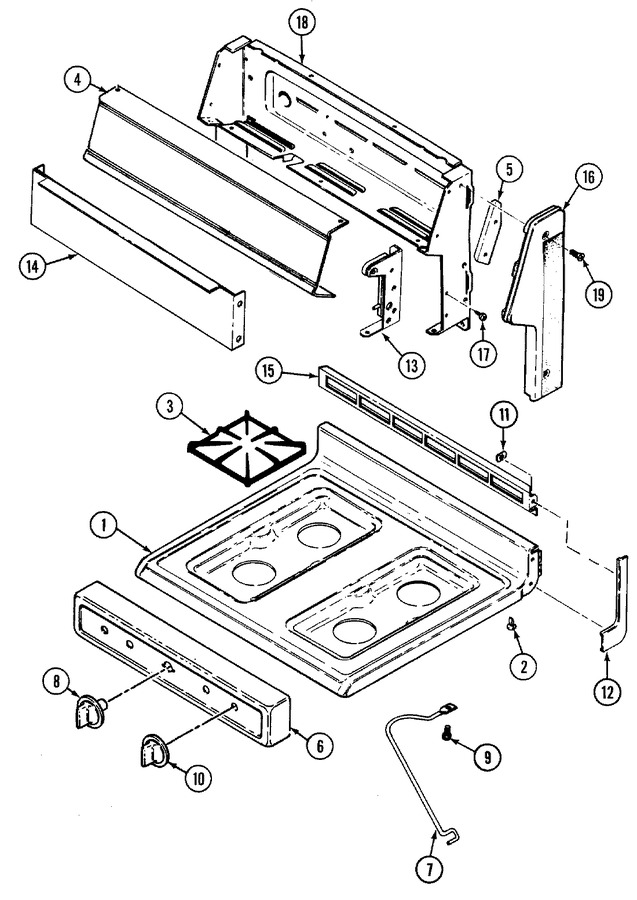

04 - Top & Control Panel Assembly (cg3110prv)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W081-81 | Top, Main (wht) | 14 |
|
- | ||||
| 2 | 8016P013-60 | Glide | 14 |
|
- | ||||
| 3 | 2003W027-26 | Grate (gry) | 14 |
|
- | ||||
| 4 | 2601F400-81 | Panel, Ctl. (wht) | 14 |
|
- | ||||
| 5 | 3807F435-45 | Support, Control Pnl (rt) | 14 |
|
- | ||||
| 5 | 3807F436-45 | Support, Control Pnl (lt) | 14 |
|
- | ||||
| 6 | 2616F085-81 | Panel, Manifold (wht) | 14 |
|
- | ||||
| 7 | 7809P014-60 | Support, Prop | 14 |
|
- | ||||
| 8 | 7731P083-60 | Knob, Thermostat (wht) | 14 |
|
- | ||||
| 9 | 7101P280-60 | Screw W/washer (blk) | 14 |
|
- | ||||
| 10 | 7733P090-60 | Knob, Valve (wht) | 14 |
|
- | ||||
| 11 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 14 |
|
$ 7.68 | ||||
| 12 | 7746P030-60 | End Cap (rt-blk) | 14 |
|
$ 26.16 | ||||
| 12 | 7746P031-60 | End Cap (lt-blk) | 14 |
|
$ 26.25 | ||||
| 13 | 3418A087-34 | Hinge, Main Top (rt) | 14 |
|
- | ||||
| 13 | 3418A088-34 | Hinge, Main Top (lt) | 14 |
|
- | ||||
| 14 | 3604F188-09 | Shield, Flue | 14 |
|
- | ||||
| 15 | 3608F042-26 | Trim, Vent (dark Gray) | 14 |
|
- | ||||
| 16 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 14 |
|
Immediately | $ 12.62 | |||
| 16 | 7726P090-60 | End Cap (lt-wht) | 14 |
|
- | ||||
| 16 | 7726P089-60 | End Cap (rt-wht) | 14 |
|
- | ||||
| 17 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 14 |
|
Immediately | $ 12.62 | |||
| 18 | 4001F088-51 | Housing, Backguard | 14 |
|
- | ||||
| 19 | 7101P318-60 | Screw | 14 |
|
- | ||||
| NI | 8113P042-60 | Manual, Use & Care | 14 |
|
- |
