01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer

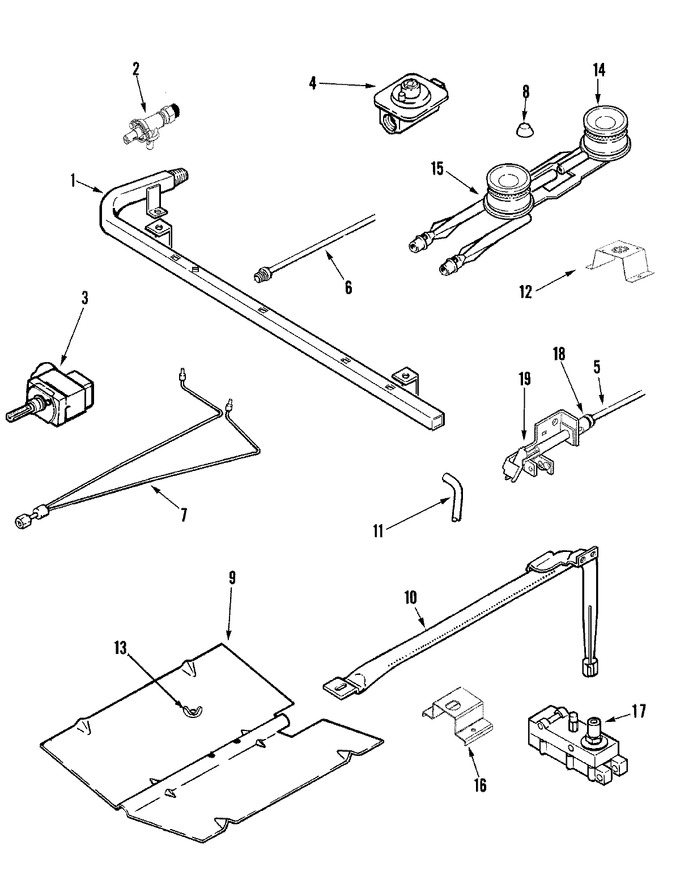

04 - Gas Controls
05 - Oven/base
06 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 74002424 | Pipe, Manifold | 10 |
|
- | ||||
| 2 | 74010448 | Valve, Top Burner | 10 |
|
$ 177.72 | ||||
| 2 | 74009582 | Valve (mueller) | 11 |
|
- | ||||
| 2 | 74009416 | Screw | 10 |
|
- | ||||
| 3 | 74006182 | Thermostat | 10 |
|
- | ||||
| 3 | 7101P010-60 | Screw, Control | 10 |
|
- | ||||
| 4 | 74006282 | Regulator, Pressure | 10 |
|
- | ||||
| 5 | 74006184 | Tubing, Pilot | 10 |
|
- | ||||
| 6 | 74009922 | Tubing, Oven Pilot (w/nut) | 10 |
|
$ 8.87 | ||||
| 7 | 74002426 | Pilot, Burner | 10 |
|
$ 65.96 | ||||
| 8 | 74002435 | Cone, Burner Pilot | 10 |
|
- | ||||
| 9 | 74002393 | Baffle, Oven Burner | 10 |
|
- | ||||
| 10 | W11233072 | Screw, (no.8x1/2``pph) (Replaces: 74009268) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74002434 | Burner, Oven | 10 |
|
$ 94.06 | ||||
| 11 | 74006185 | Tubing, Oven Valve | 10 |
|
- | ||||
| 12 | 74010150 | Support, Top Burner | 10 |
|
- | ||||
| 13 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 | ||||
| 14 | 74010148 | Burner, Top (rear) | 10 |
|
$ 80.15 | ||||
| 15 | 74010149 | Burner, Top (frt) | 10 |
|
$ 52.76 | ||||
| 16 | 74010236 | Bracket, Orifice Holder | 10 |
|
- | ||||
| 17 | 74002428 | Valve, Oven | 11 |
|
- | ||||
| 17 | 74011143 | Valve, Safety (nat) | 10 |
|
$ 30.23 | ||||
| 18 | 7103P070-60 | Nut, Top Pilot | 10 |
|
- | ||||
| 19 | 74006183 | Pilot, Oven | 10 |
|
$ 74.59 |
