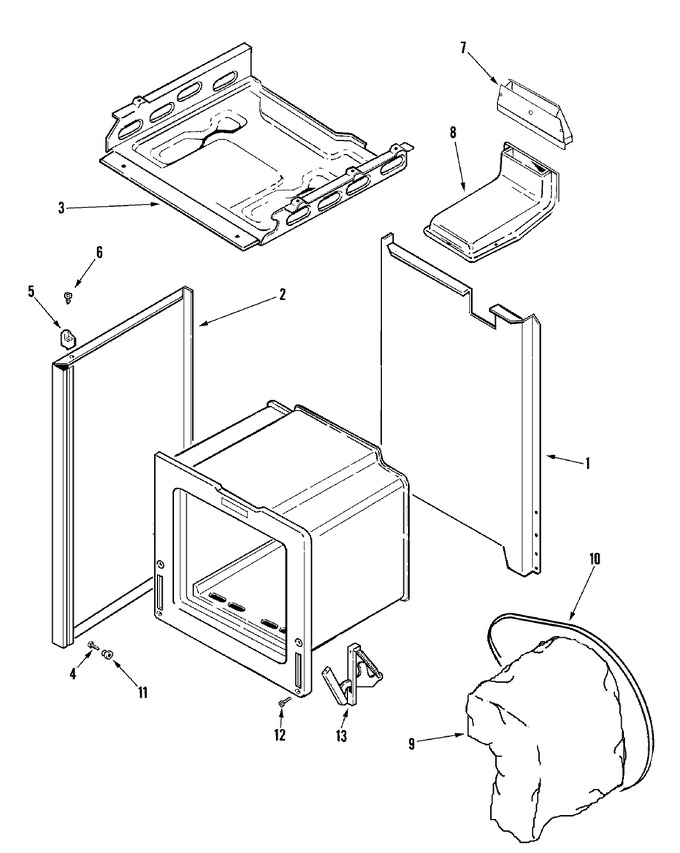

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74009884		Back, Main (gas)	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
1	WP3400074		Screw   (Replaces: 74004594)	10			$ 6.47
2	74003236		Panel, Side (wht)	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	74010038		Box, Burner	10	Appelez-nous	-
4	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	10		Immediately	$ 12.65
5	8010P088-60		Spacer, Main Top (rt)	10	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	10	Appelez-nous	-
6	W11233072		Screw (no.8ab)   (Replaces: 71001183)	10		Immediately	$ 12.62
7	74002366		Extension, Vent Box	10	Appelez-nous	-
7	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	WP74003976		Screw, Shoulder   (Replaces: 74003976)	10			$ 6.47
8	74006420		Box, Vent	10	Appelez-nous	-
9	74002634		Insulation, Oven Back	10	Appelez-nous	-
9	74002370		Insulation, Oven Wrap	10	Appelez-nous	-
10	74002369		Strap, Insulation Retainer	10	Appelez-nous	-
11	WPW10348409		Screw, W/shoulder   (Replaces: 74007476)	10		Immediately	$ 6.98
11	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	10			$ 7.07
12	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
13	WP74011140		Hinge, Door   (Replaces: 74003243)	10		Immediately	$ 120.21
